- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LFCG-2250+
- Part Number LFCG-2250+
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Filter
- Package Category Other
- Footprint Name Other - LFCG-2250+-1
- Released Date Jul 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LFCG-2250+ Details
-
Manufacturer Part Number:
LFCG-2250+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7.29
-
Average Input Power:
5.5 W
-
Filter Type:
CERAMIC LPF
-
Input/Output Impedance:
50 OHM
-
JESD-609 Code:
e3
-
Mounting Type:
SURFACE MOUNT
LFCG-2250+ Frequently Asked Questions (FAQs)
-
A multi-layer PCB with a solid ground plane and a low-impedance path to the chassis is recommended. Use a star-grounding scheme to minimize noise and ensure that the device is properly decoupled.
-
The device requires a single +15V power supply. Ensure that the power supply is well-regulated and decoupled to prevent noise and oscillations. A 10uF capacitor in parallel with a 100nF capacitor is recommended for decoupling.
-
The maximum input power is +10dBm. Exceeding this limit may result in compression, distortion, or even damage to the device.
-
The device is optimized for the 2-8 GHz frequency range. For optimal performance, use a matching network or tuning elements to optimize the input and output impedance for the specific frequency range of interest.
-
The operating temperature range is -40°C to +85°C. Ensure that the device is operated within this range to ensure optimal performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
LFCG-2250+ Overview

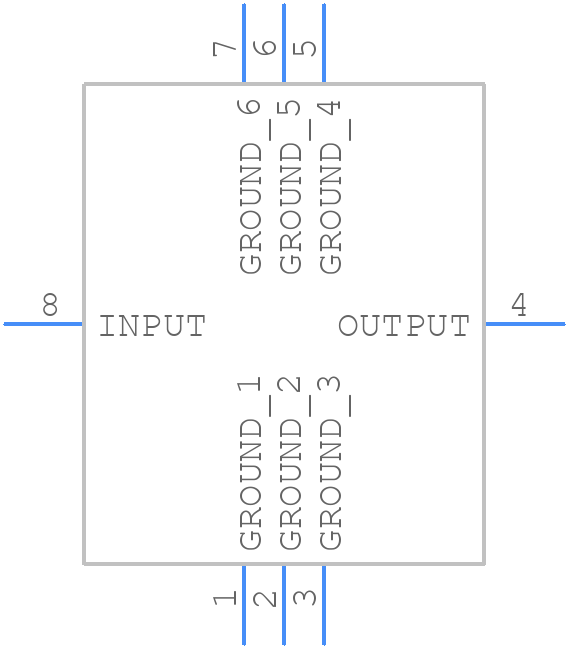

Use the download button to access the LFCG-2250+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFCG-,
or try a keyword search, such as Ceramic Filters
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
