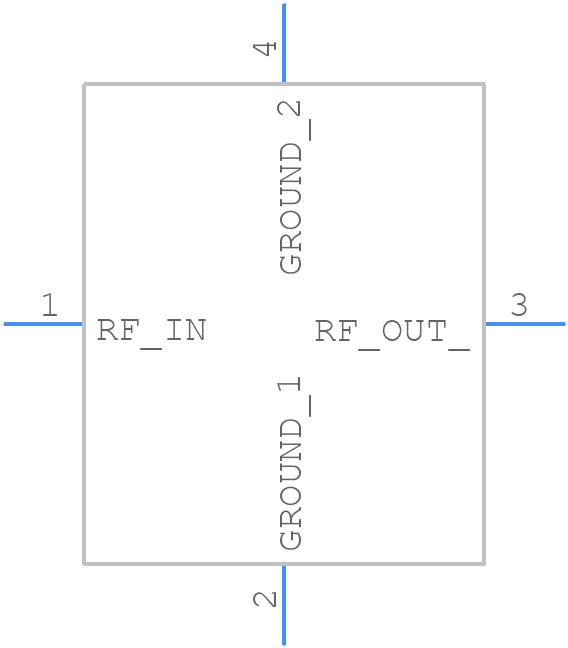

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LFCN-6000
- Part Number LFCN-6000
- Manufacturer Mini-Circuits
- Pin Count 4
- Part Category Filter
- Package Category Other
- Footprint Name Other - LFCN-6000-2
- Released Date Jul 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LFCN-6000 Details
-
Manufacturer Part Number:
LFCN-6000
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
5.58
-
Additional Feature:
TAPE AND REEL
-
Attenuation Frequency (+/- delta f)-Max:
1900000 kHz
-
Attenuation Frequency (+/- delta f)-Min:
1700000 kHz
-
Attenuation@Freq-Max:
30 dB
-
Attenuation@Freq-Min:
20 dB
LFCN-6000 Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. The device should be placed near the edge of the board to minimize signal reflections. A detailed application note is available on the Mini-Circuits website.
-
To achieve the best possible noise figure, ensure that the input is properly matched to 50 ohms, and use a high-quality, low-noise power supply. Additionally, keep the device away from noise sources and use proper shielding and grounding techniques.
-
The maximum input power that the LFCN-6000 can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
-
While the LFCN-6000 is designed for 50-ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the device's performance and noise figure. Consult with a Mini-Circuits application engineer for guidance on impedance matching.
-
The operating temperature range of the LFCN-6000 is -40°C to +85°C. However, the device's performance may vary outside of the recommended temperature range of 0°C to +70°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
LFCN-6000 Overview
Use the download button to access the LFCN-6000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LFCN-,
or try a keyword search, such as Ceramic Filters
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
