LFD182G45MJ5D658 - Murata Electronics

Description: RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad

Download LFD182G45MJ5D658 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

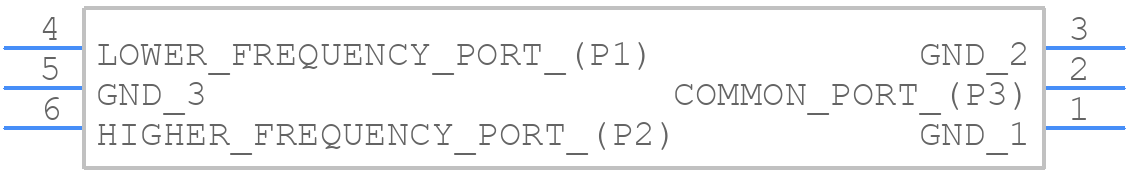

Symbol
LFD182G45MJ5D658 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LFD182G45MJ5D658 - Murata Electronics PCB footprint - Other - Other - LFD182G45MJ5D658
click to zoom
3D Models
LFD182G45MJ5D658 - Murata Electronics - 3D model - Other - LFD182G45MJ5D658
click to zoom

LFD182G45MJ5D658 Details

  • Manufacturer Part Number:

    LFD182G45MJ5D658

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8529.90.98.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DUPLEXER

  • Height:

    0.7 mm

  • Length:

    1.6 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Width:

    0.8 mm

LFD182G45MJ5D658 Frequently Asked Questions (FAQs)

  • Murata recommends a soldering temperature profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp-up rate of 3°C/second.
  • Yes, the LFD182G45MJ5D658 is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration, and 3 hours duration, making it suitable for high-vibration applications.
  • The LFD182G45MJ5D658 is classified as a 'moisture-resistant' capacitor, with a moisture sensitivity level of 2a, indicating it can withstand 60°C/90% RH for 96 hours without significant degradation.
  • The ESR of the LFD182G45MJ5D658 is approximately 0.015 ohms at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • The LFD182G45MJ5D658 is rated for operation up to 125°C, with a derating of capacitance and insulation resistance above 85°C. It's essential to consider the temperature coefficient and derating factors when designing for high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LFD182G45MJ5D658 Overview

Use the download button to access the LFD182G45MJ5D658 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFD18, or try a keyword search, such as Duplexers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
