LFD182G45MJ6D431 - Murata Electronics

Description: WLAN Diplexer, Frequency Range 1: 2400.00MHz to 2500.00MHz, Frequency Range 2: 4900.00MHz to 5950.00MHz

Download LFD182G45MJ6D431 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

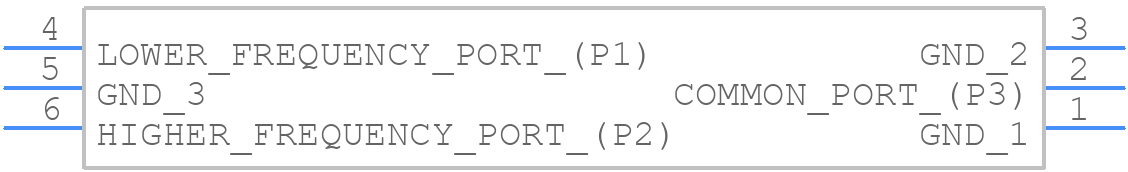

LFD182G45MJ6D431 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LFD182G45MJ6D431 - Murata Electronics PCB footprint - Other - Other - LFD182G45MJ6D431
click to zoom
3D Models
LFD182G45MJ6D431 - Murata Electronics - 3D model - Other - LFD182G45MJ6D431
click to zoom

LFD182G45MJ6D431 Details

  • Manufacturer Part Number:

    LFD182G45MJ6D431

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8529.90.98.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DUPLEXER

  • Height:

    0.7 mm

  • Insertion Loss (Rx):

    0.6 dB

  • Insertion Loss (Tx):

    0.8 dB

  • Length:

    1.6 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Receive Center Frequency:

    2450 MHz

  • Transmit Center Frequency:

    5425 MHz

  • VSWR:

    1.8

  • Width:

    0.8 mm
