LFD212G45MJ7R816 - Murata Electronics

Description: WLAN Diplexer, Frequency Range 1: 4900.00MHz to 5950.00MHz, Frequency Range 2: 2400.00MHz to 2500.00MHz

Download LFD212G45MJ7R816 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

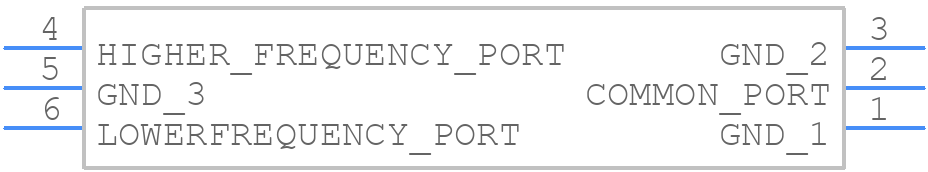

Symbol
LFD212G45MJ7R816 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LFD212G45MJ7R816 - Murata Electronics PCB footprint - Other - Other - LFD212G45MJ7R816
click to zoom
3D Models
LFD212G45MJ7R816 - Murata Electronics - 3D model - Other - LFD212G45MJ7R816
click to zoom

LFD212G45MJ7R816 Details

  • Manufacturer Part Number:

    LFD212G45MJ7R816

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8529.90.98.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DUPLEXER

  • Height:

    0.5 mm

  • Insertion Loss (Rx):

    0.95 dB

  • Insertion Loss (Tx):

    0.95 dB

  • Length:

    2 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Receive Center Frequency:

    5245 MHz

  • Transmit Center Frequency:

    5245 MHz

  • VSWR:

    2.2

  • Width:

    1.25 mm

LFD212G45MJ7R816 Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between pads.
  • The LFD212G45MJ7R816 is a moisture-sensitive device. It's recommended to store it in a dry environment (less than 30% RH) and bake it at 125°C for 24 hours before reflow soldering if it has been exposed to moisture.
  • The maximum reflow temperature for LFD212G45MJ7R816 is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds.
  • While the LFD212G45MJ7R816 is a robust component, it's not specifically designed for high-vibration applications. Murata recommends consulting their application notes and performing thorough testing to ensure the capacitor meets the required reliability standards.
  • The ESR of LFD212G45MJ7R816 can be determined by measuring the impedance at the resonant frequency (around 100 kHz) using an impedance analyzer or a network analyzer. The ESR is typically around 30-40 mΩ.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LFD212G45MJ7R816 Overview

Use the download button to access the LFD212G45MJ7R816 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFD21, or try a keyword search, such as Duplexers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
