LFD21868MMF1D386 - Murata Electronics

Description: FILTERS; Filter Type:Balun; No. of Pins:-; Pass Band Frequency:891.5 Mhz; RF Filter Applications:-; Filter Case Style:0805 [2012 Metric]; Product Range:LFD21 Series; SVHC:No SVHC (15-Jan-2019) RoHS Compliant: Yes

Download LFD21868MMF1D386 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

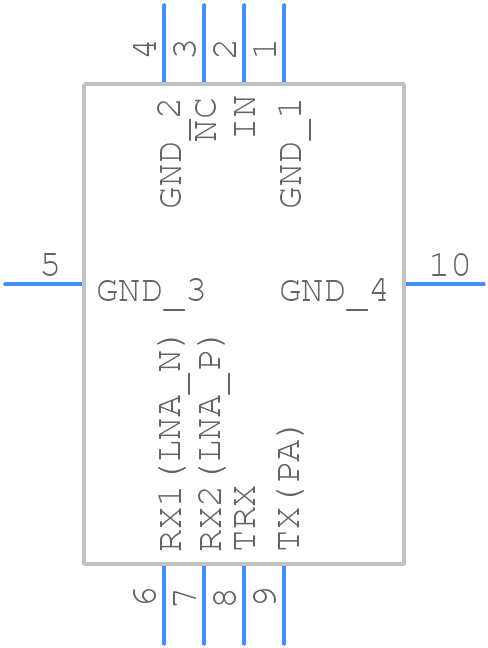

LFD21868MMF1D386 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LFD21868MMF1D386 - Murata Electronics PCB footprint - Other - Other - LFD21868MMF1D386-2
click to zoom
3D Models
LFD21868MMF1D386 - Murata Electronics - 3D model - Other - LFD21868MMF1D386-2
click to zoom

LFD21868MMF1D386 Details

  • Manufacturer Part Number:

    LFD21868MMF1D386

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8529.90.98.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Filter Type:

    DUPLEXER

  • Height:

    0.7 mm

  • Length:

    2 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Receive Center Frequency:

    891.5 MHz

  • Transmit Center Frequency:

    891.5 MHz

  • Width:

    1.25 mm

LFD21868MMF1D386 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LFD21868MMF1D386 capacitor is a rectangular pad with a size of 3.2mm x 1.6mm, with a solder mask clearance of 0.2mm.
  • To prevent damage, handle the capacitor by the body, avoid touching the electrodes, and use an anti-static wrist strap or mat during assembly.
  • The maximum voltage derating for the LFD21868MMF1D386 capacitor is 80% of the rated voltage, which is 16.5V for this specific part.
  • The LFD21868MMF1D386 capacitor is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • Store the capacitor in a dry, cool place, away from direct sunlight and moisture. Avoid storing the capacitor in a location with high humidity or extreme temperatures.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LFD21868MMF1D386 Overview

Use the download button to access the LFD21868MMF1D386 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFD21, or try a keyword search, such as Duplexers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
