The recommended land pattern for the LFD21892MDP2B860 can be found in the Murata Land Pattern Recommendation document, which provides detailed information on the recommended pad layout and dimensions for optimal mounting and soldering.
To prevent damage, handle the LFD21892MDP2B860 by the edges, avoid touching the component body, and use an anti-static wrist strap or mat to prevent electrostatic discharge. Also, ensure the assembly area is clean and free from debris.
The maximum reflow temperature for the LFD21892MDP2B860 is 260°C, as specified in the datasheet. Exceeding this temperature may cause damage to the component.
While the LFD21892MDP2B860 is designed to be robust, it's essential to evaluate the component's performance in a high-vibration environment. Murata recommends consulting with their application engineers to determine the suitability of the component for specific vibration requirements.
Store the LFD21892MDP2B860 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 70%.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LFD21892MDP2B860 Overview

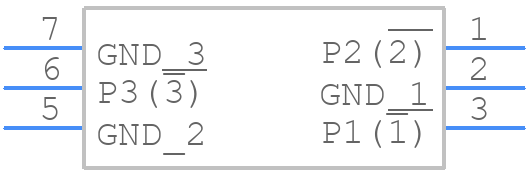

Use the download button to access the LFD21892MDP2B860 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFD21,
or try a keyword search, such as Duplexers
