LFOCXO063801Bulk - IQD

Description: IQD 12.8 MHz OCXO Crystal Oscillator, SMD ±20ppb HCMOSLFOCXO063801Bulk

Download LFOCXO063801Bulk Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

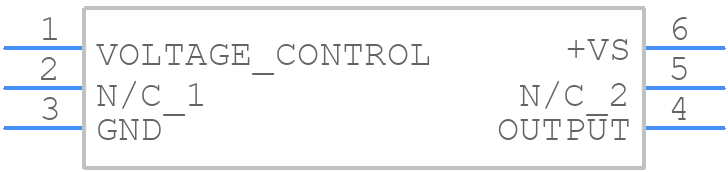

LFOCXO063801Bulk - IQD - PCB symbol
click to zoom
PCB Footprints
LFOCXO063801Bulk - IQD PCB footprint - Other - Other - LFOCXO063801Bulk-1
click to zoom
3D Models
LFOCXO063801Bulk - IQD - 3D model - Other - LFOCXO063801Bulk-1
click to zoom

LFOCXO063801Bulk Details

  • Manufacturer Part Number:

    LFOCXO063801BULK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    BULK

  • Aging:

    0.5 PPM/YEAR

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.02%

  • Input Power:

    0.99 W

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    12.8 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Oven Supply Voltage:

    3.3V

  • Physical Dimension:

    14.4mm x 9.5mm x 6.5mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Warm-up Power:

    1.98 W

  • Warm-up Time-Max:

    5 Minute

LFOCXO063801Bulk Frequently Asked Questions (FAQs)

  • The recommended storage condition for LFOCXO063801BULK is in a dry, cool place with a temperature range of -40°C to +85°C and relative humidity of 60% or less.
  • Yes, LFOCXO063801BULK is designed to operate in high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering to prevent damage.
  • The typical lead time for LFOCXO063801BULK is 4-6 weeks, but it may vary depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributor for the latest lead time information.
  • Yes, LFOCXO063801BULK is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.
  • LFOCXO063801BULK is designed to operate up to 85°C, but it's recommended to derate the frequency stability and output power above 70°C. For high-temperature applications, it's recommended to consult with the manufacturer or consider a different oscillator model.
