LFOCXO063815Bulk - IQD

Description: LFOCXO063815Bulk Crystal Oscillator, 10 MHz, ±1ppb Sinewave 15pF, 5-Pin 36x27mm DIP, 36.2 x 27.2 x 13mm

Download LFOCXO063815Bulk Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

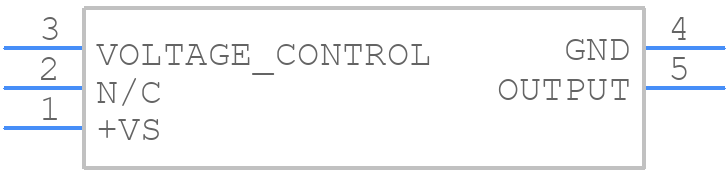

LFOCXO063815Bulk - IQD - PCB symbol
click to zoom
PCB Footprints

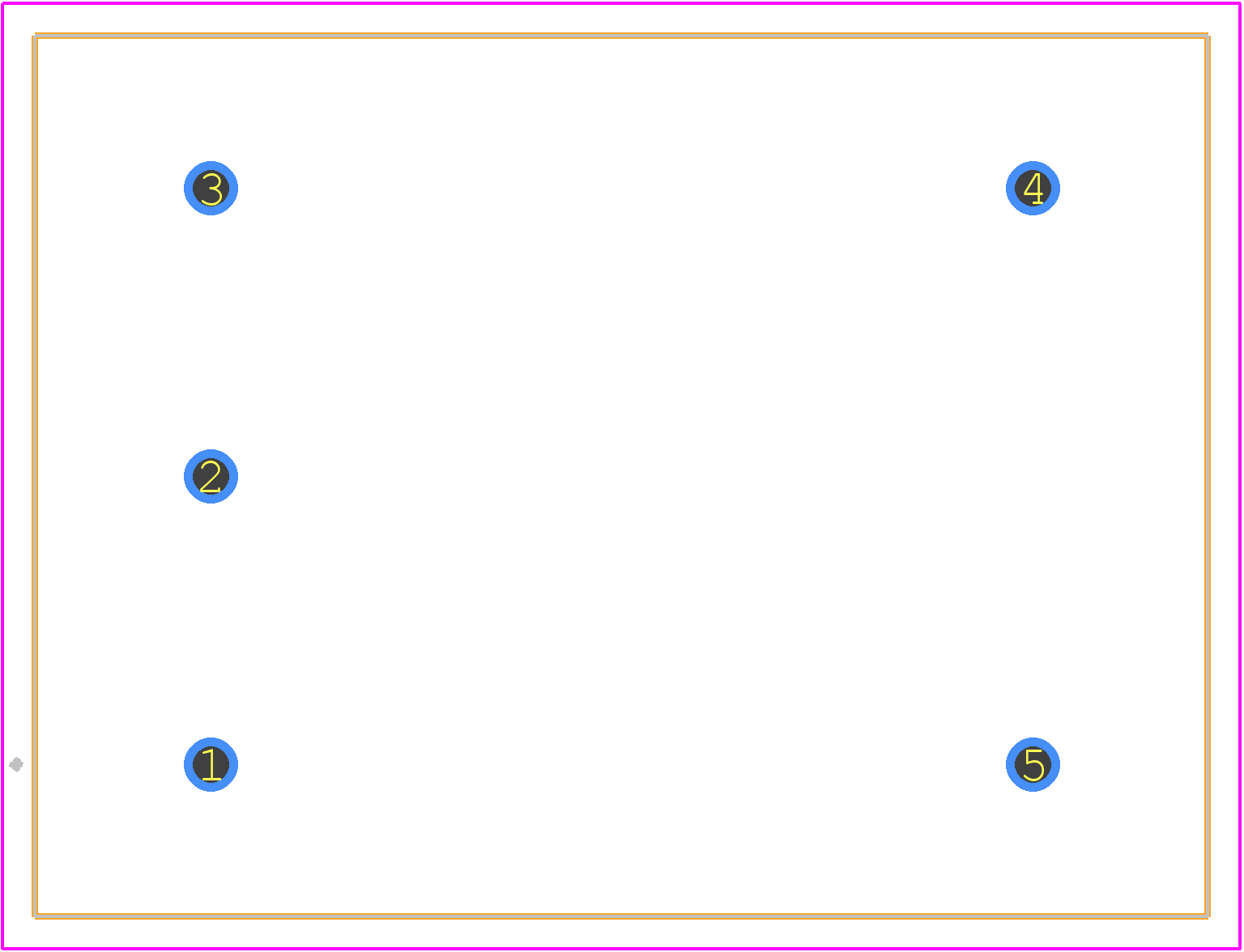

LFOCXO063815Bulk - IQD PCB footprint - Other - Other - LFOCXO063815Bulk-2
click to zoom
3D Models
LFOCXO063815Bulk - IQD - 3D model - Other - LFOCXO063815Bulk-2
click to zoom

LFOCXO063815Bulk Details

  • Manufacturer Part Number:

    LFOCXO063815BULK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    BULK

  • Aging:

    0.05 PPM/YEAR

  • Control Voltage-Max:

    3.3 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.001%

  • Input Power:

    1.65 W

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset Frequency:

    1 kHz

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    SINE

  • Output Impedance:

    50 Ω

  • Output Level:

    1.262 V

  • Oven Supply Voltage:

    3.3V

  • Phase Noise:

    -150 dBc/Hz

  • Physical Dimension:

    36.2mm x 27.2mm x 13.4mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Warm-up Power:

    4.62 W

  • Warm-up Time-Max:

    15 Minute

LFOCXO063815Bulk Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LFOCXO063815BULK is -40°C to +125°C.
  • Yes, LFOCXO063815BULK is designed to withstand high-vibration environments, but it's recommended to consult with IQD Frequency Products for specific vibration testing and validation.
  • The lead time for custom frequency options for LFOCXO063815BULK is typically 6-8 weeks, but it may vary depending on the specific requirements and IQD Frequency Products' production schedule.
  • Yes, LFOCXO063815BULK is compatible with lead-free soldering processes, but it's recommended to follow IQD Frequency Products' recommended soldering profile to ensure optimal performance.
  • The typical power consumption of LFOCXO063815BULK is around 10-15mA, but it may vary depending on the specific application and operating conditions.
