LFTVXO076346REEL - IQD

Description: XTAL OSC VCTCXO 25.0000MHZ SNWV

Download LFTVXO076346REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

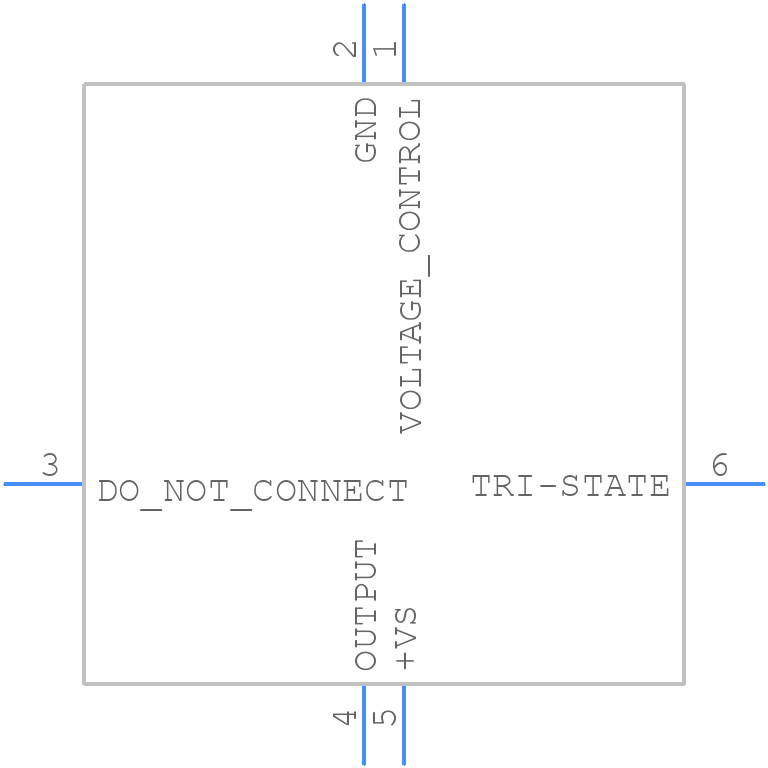

LFTVXO076346REEL - IQD - PCB symbol
click to zoom
PCB Footprints
LFTVXO076346REEL - IQD PCB footprint - Other - Other - LFTVXO076346REEL-4
click to zoom
3D Models
LFTVXO076346REEL - IQD - 3D model - Other - LFTVXO076346REEL-4
click to zoom

LFTVXO076346REEL Details

  • Manufacturer Part Number:

    LFTVXO076346REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; TR

  • Aging:

    1 PPM/YEAR

  • Control Voltage-Max:

    2.8 V

  • Control Voltage-Min:

    0.5 V

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    3 ppm

  • Frequency Stability:

    0.25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -5 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Impedance:

    10000 Ω

  • Output Level:

    0.8 V

  • Physical Dimension:

    7.0mm x 5.0mm x 2.0mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES
