LFXTAL026382Reel - IQD

Description: Crystals 11.05920MHz 7.5 x 5.0 x 1.4mm

Download LFXTAL026382Reel Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

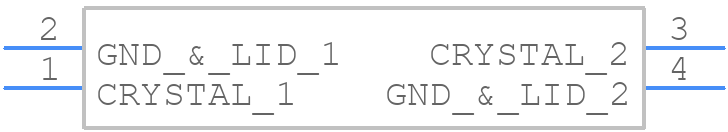

Symbol
LFXTAL026382Reel - IQD - PCB symbol
click to zoom
PCB Footprints
LFXTAL026382Reel - IQD PCB footprint - Other - Other - LFXTAL026382Reel-2
click to zoom
3D Models
LFXTAL026382Reel - IQD - 3D model - Other - LFXTAL026382Reel-2
click to zoom

LFXTAL026382Reel Details

  • Manufacturer Part Number:

    LFXTAL026382REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance:

    30 ppm

  • JESD-609 Code:

    e4

  • Load Capacitance:

    16 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    11.0592 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L7.5XB5.2XH1.4 (mm)/L0.295XB0.205XH0.055 (inch)

  • Series Resistance:

    60 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

LFXTAL026382Reel Frequently Asked Questions (FAQs)

  • The recommended storage condition for LFXTAL026382REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and relative humidity of 60% or less.
  • While LFXTAL026382REEL is designed to be rugged, it's still recommended to consult with IQD Frequency Products or a qualified engineer to ensure the crystal oscillator can withstand the specific vibration levels and frequencies in your application.
  • To prevent electrostatic discharge (ESD) damage, handle LFXTAL026382REEL with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that your workspace and tools are also ESD-protected.
  • The lead time for LFXTAL026382REEL can vary depending on the quantity, packaging, and shipping options. Contact IQD Frequency Products or an authorized distributor for the most up-to-date lead time information.
  • While LFXTAL026382REEL is rated for operation up to 85°C, it's essential to consult with IQD Frequency Products or a qualified engineer to ensure the crystal oscillator can withstand the specific temperature range and thermal cycling in your application.
