The recommended storage condition for the LFXTAL026384REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 60%.
While the LFXTAL026384REEL is rated for operation up to 85°C, it's not recommended for use in high-temperature applications above 85°C. For high-temperature applications, a different crystal oscillator may be required.
The recommended soldering profile for the LFXTAL026384REEL is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
Yes, the LFXTAL026384REEL is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliable assembly.
The typical power consumption of the LFXTAL026384REEL is around 1-2 μW, depending on the specific application and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LFXTAL026384Reel Overview

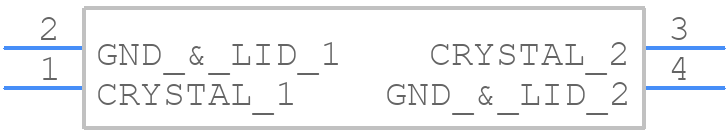

Use the download button to access the LFXTAL026384Reel schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA,
or try a keyword search, such as Quartz Crystals
