LFXTAL035268 footprint, schematic symbol and 3D model by IQD

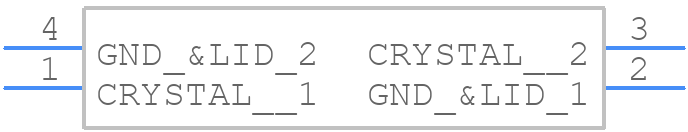

Symbol

PCB Footprints

3D Models

LFXTAL035268 Details

The recommended storage condition for LFXTAL035268 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to +85°C.
While LFXTAL035268 is designed to operate in a wide range of temperatures, it's not recommended to use it in humid environments above 80% RH. Excessive humidity can affect the crystal's frequency stability and overall performance.
The maximum drive level for LFXTAL035268 is 1 μW. Exceeding this level can cause the crystal to overheat, leading to frequency instability and reduced lifespan.
Yes, LFXTAL035268 is compatible with lead-free soldering. However, it's essential to follow the recommended soldering profile to avoid damaging the crystal.
The typical aging rate of LFXTAL035268 is ±2 ppm per year at +25°C. This means that the crystal's frequency will drift by ±2 ppm over a period of one year at room temperature.

Community Provided

System Verified

Community Approved

Use the download button to access the LFXTAL035268 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA, or try a keyword search, such as Quartz Crystals
