LFXTAL036338 - IQD

Description: Quartz Standard 3.2 x 2.5mm SMD Crystal 22.00pF , 100µW , 120.00Ω , 14.74560MHz , -55°C to 125°C

Download LFXTAL036338 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LFXTAL036338 model

Email notifications will be applied after download.

Send part feedback

Symbol

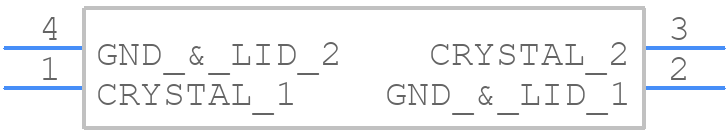

LFXTAL036338 - IQD - PCB symbol

PCB Footprints

LFXTAL036338 - IQD PCB footprint - Other - Other - SMD-4

3D Models

LFXTAL036338 - IQD - 3D model - Other - SMD-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for LFXTAL036338
Part Number LFXTAL036338
Manufacturer IQD
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - SMD-4
Released Date Mar 11, 2026
Last Modified Date Mar 11, 2026 6:48 AM UTC
Pinout / Pin List Click Here (Member Only)

LFXTAL036338 Details
