LFXTAL051068Reel - IQD

Description: Crystals 25MHz /9pF -20C 70C

Download LFXTAL051068Reel Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

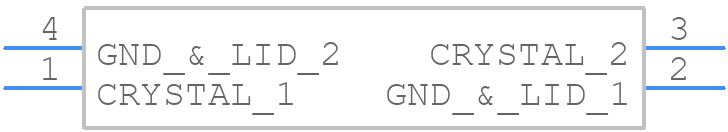

LFXTAL051068Reel - IQD - PCB symbol
click to zoom
PCB Footprints
LFXTAL051068Reel - IQD PCB footprint - Other - Other - LFXTAL051068Reel-2
click to zoom
3D Models
LFXTAL051068Reel - IQD - 3D model - Other - LFXTAL051068Reel-2
click to zoom

LFXTAL051068Reel Details

  • Manufacturer Part Number:

    LFXTAL051068REEL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • HTS Code:

    8541.60.00.60

  • Manufacturer:

    IQD Frequency Products

  • YTEOL:

    0

  • Additional Feature:

    TR

  • Aging:

    5 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.001%

  • Frequency Tolerance:

    10 ppm

  • Load Capacitance:

    9 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L3.4XB2.7XH0.8 (mm)/L0.134XB0.106XH0.031 (inch)

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

LFXTAL051068Reel Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for LFXTAL051068REEL is -40°C to +125°C.
  • The operating temperature range for LFXTAL051068REEL is -40°C to +85°C.
  • The recommended soldering temperature profile for LFXTAL051068REEL is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, LFXTAL051068REEL is RoHS and REACH compliant.
