The recommended storage condition for LFXTAL055663BULK is in a dry, cool place with a temperature range of -20°C to +40°C and relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
While LFXTAL055663BULK is designed to be robust, it's not recommended for use in high-vibration environments (>10g) without proper mounting and mechanical isolation. Consult with IQD Frequency Products or a qualified engineer for specific guidance.
LFXTAL055663BULK is an ESD-sensitive device. Handle it with ESD-protective equipment, such as wrist straps, mats, and bags. Avoid touching the device's pins or leads, and ensure that your workspace is ESD-safe.
The recommended soldering profile for LFXTAL055663BULK is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second. Avoid using excessive soldering temperatures or times, as this can damage the device.
LFXTAL055663BULK is not designed for use in humid environments (>80% relative humidity). If you need to operate the device in a humid environment, consider using a hermetically sealed package or applying a conformal coating to protect the device from moisture.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LFXTAL055663Bulk Overview

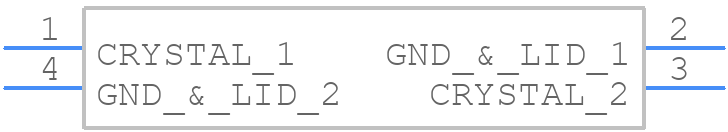

Use the download button to access the LFXTAL055663Bulk schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA,
or try a keyword search, such as Quartz Crystals
