LFXTAL055663Reel footprint, schematic symbol and 3D model by IQD

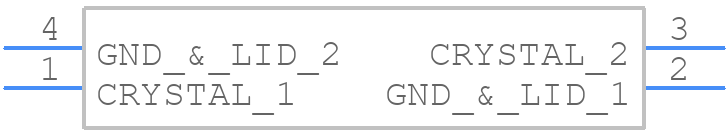

Symbol

PCB Footprints

3D Models

LFXTAL055663Reel Details

The recommended storage condition is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 60%.
While the LFXTAL055663REEL is rated for operation up to 85°C, it's not recommended for continuous use above 70°C. For high-temperature applications, consider using a specialized high-temperature crystal oscillator.
Handle the device by the package, avoiding touching the crystal or metal surfaces. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
The recommended soldering profile is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
While the LFXTAL055663REEL is designed for general-purpose use, it's not specifically designed for vacuum or high-vibration environments. For such applications, consider using a specialized crystal oscillator designed for those conditions.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LFXTAL055663Reel schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA, or try a keyword search, such as Quartz Crystals

Showing 0 results

Image	Part Number	Model
	LFXTAL055663 IQD Frequency Products Parallel - Fundamental Quartz Crystal, 8MHz Nom
For a full list of alternate parts for LFXTAL055663Reel, check out Findchips.com
