LFXTAL059158Reel footprint, schematic symbol and 3D model by IQD

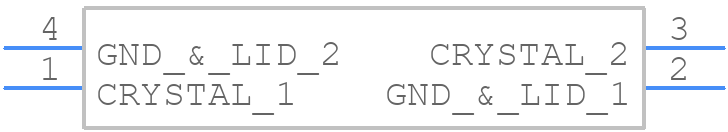

Symbol

PCB Footprints

3D Models

LFXTAL059158Reel Details

The recommended storage condition for LFXTAL059158REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to +40°C and relative humidity of 60% or less.
While LFXTAL059158REEL is designed to be robust, it's not recommended for use in high-vibration environments (>10g) without proper mounting and mechanical isolation. Consult IQD Frequency Products for specific guidance.
The maximum soldering temperature for LFXTAL059158REEL is 260°C for a maximum of 10 seconds. Exceeding this temperature or time may damage the crystal.
Yes, LFXTAL059158REEL is compatible with lead-free soldering processes, but ensure that the soldering profile follows the recommended temperature and time guidelines.
The typical lead time for LFXTAL059158REEL is 4-6 weeks, but this may vary depending on the quantity and availability. Contact IQD Frequency Products for the most up-to-date lead time information.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LFXTAL059158Reel schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA, or try a keyword search, such as Quartz Crystals
