- Part Number LFXTAL061627Reel
- Manufacturer IQD
- Pin Count 4
- Part Category Crystal or Oscillator
- Package Category Other
- Footprint Name Other - LFXTAL061627Reel-2
- Released Date Aug 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LFXTAL061627Reel Details
-
Manufacturer Part Number:
LFXTAL061627REEL
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
HERMETIC SEALED, CERAMIC, SMD, 4 PIN
-
HTS Code:
8541.60.00.50
-
Manufacturer:
IQD Frequency Products
-
YTEOL:
0
-
Additional Feature:
TR
-
Aging:
3 PPM/YEAR
-
Crystal/Resonator Type:
PARALLEL - FUNDAMENTAL
-
Drive Level:
100 µW
LFXTAL061627Reel Frequently Asked Questions (FAQs)
-
The recommended storage condition for LFXTAL061627REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and relative humidity of 60% or less.
-
While LFXTAL061627REEL is designed to be rugged, it's still recommended to consult with IQD Frequency Products or a qualified engineer to ensure the crystal oscillator can withstand the specific vibration levels and frequencies in your application.
-
To prevent electrostatic discharge (ESD) damage, handle LFXTAL061627REEL with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that all personnel handling the device are properly grounded.
-
The recommended soldering profile for LFXTAL061627REEL is a peak temperature of 260°C, with a dwell time of 10-30 seconds. However, it's recommended to consult with IQD Frequency Products or a qualified engineer to ensure the specific soldering profile meets the requirements of your application.
-
While LFXTAL061627REEL is rated for operation up to 85°C, it's recommended to consult with IQD Frequency Products or a qualified engineer to ensure the device can withstand the specific temperature range and thermal cycling requirements of your application.
Trust Checks
Community Provided
System Verified
Community Approved
LFXTAL061627Reel Overview

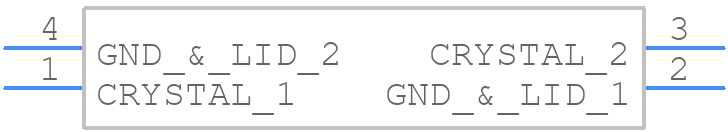

Use the download button to access the LFXTAL061627Reel schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFXTA,
or try a keyword search, such as Quartz Crystals
