LFXTAL069277Reel footprint, schematic symbol and 3D model by IQD

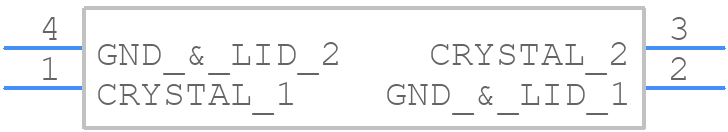

Symbol

PCB Footprints

3D Models

LFXTAL069277Reel Details

The recommended storage condition for LFXTAL069277REEL is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and relative humidity of 60% or less.
While LFXTAL069277REEL is designed to be robust, it's not recommended for use in high-vibration environments (>10g) without proper mounting and mechanical isolation. Consult IQD Frequency Products for specific guidance.
The maximum soldering temperature for LFXTAL069277REEL is 260°C for a maximum of 10 seconds. Exceeding this temperature or time may damage the crystal.
Yes, LFXTAL069277REEL is compatible with lead-free soldering processes, but ensure that the soldering profile follows the recommended temperature and time guidelines.
The typical lead time for LFXTAL069277REEL is 6-8 weeks, but this may vary depending on the quantity and availability. Consult IQD Frequency Products for the most up-to-date lead time information.
