LH15-10B12 - Morunsun

Description: PWR SPLY 90-264VAC TO 12V

Download LH15-10B12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

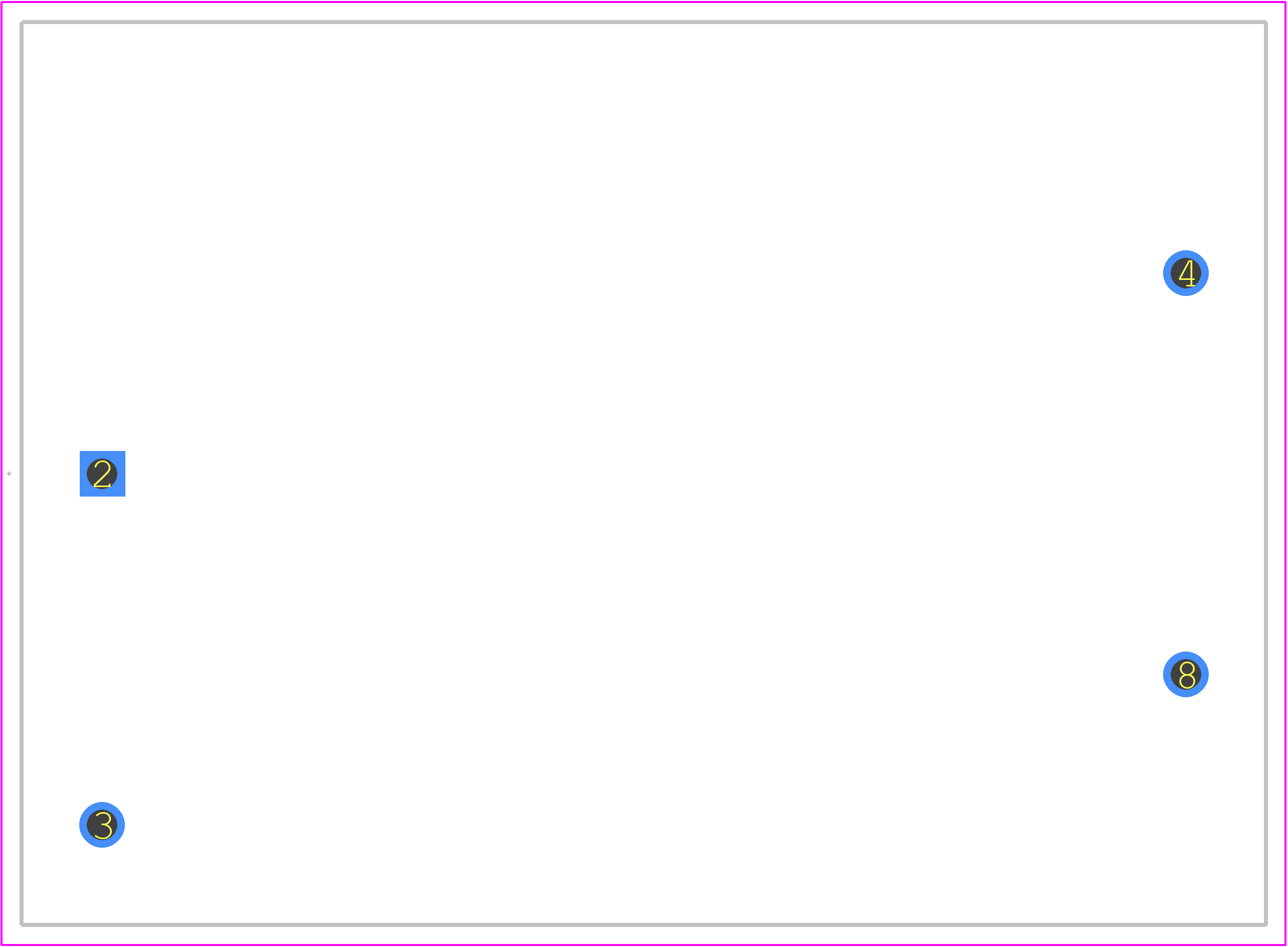

LH15-10B12 - Morunsun PCB footprint - Other - Other - LH15-10B12-1
click to zoom
3D Models
LH15-10B12 - Morunsun  - 3D model - Other - LH15-10B12-1
click to zoom

LH15-10B12 Details

  • Manufacturer Part Number:

    LH15-10B12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    MORNSUN

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,8LEAD,2.2

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    OTHER

  • Total Power Output-Max:

    15 W

LH15-10B12 Frequently Asked Questions (FAQs)

  • MORNSUN recommends a PCB layout with a large copper area connected to the tab of the device to improve thermal dissipation. A minimum of 1 oz copper thickness is recommended.
  • Yes, the LH15-10B12 is designed to withstand vibrations up to 10G (10-2000Hz) according to IEC 60068-2-6. However, it's recommended to follow proper mounting and soldering procedures to ensure reliability.
  • To ensure reliability in high-temperature applications, MORNSUN recommends derating the output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and a clean, dry environment.
  • MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close to the input pins as possible.
  • Yes, the LH15-10B12 can be used in a redundant or parallel configuration. However, it's recommended to follow proper design guidelines and ensure that the devices are properly synchronized and isolated to prevent damage or instability.
