LIS3DHTR - STMicroelectronics

Description: Accelerometer 3-Axis 2g/16g 1.8V LGA16 STMicroelectronics LIS3DHTR Accelerometer IC, 3-axis, I2C, SPI 1.71 → 3.6 V, 16-Pin LGA

Download LIS3DHTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

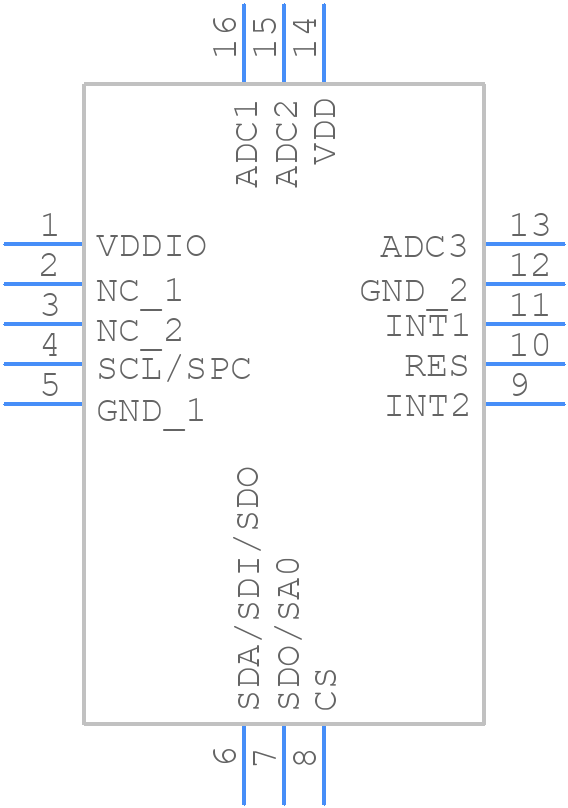

Symbol
LIS3DHTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LIS3DHTR - STMicroelectronics PCB footprint - Other - Other - LGA-16_2
click to zoom
3D Models
LIS3DHTR - STMicroelectronics - 3D model - Other - LGA-16_2
click to zoom

LIS3DHTR Details

  • Manufacturer Part Number:

    LIS3DHTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    SEATED HGT MAX

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.18-1.62V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

LIS3DHTR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VDDIO, then VDD, and finally enable the device by setting the CS pin low. This ensures proper initialization and prevents unwanted behavior.
  • The self-test feature is enabled by setting the ST bit in the CTRL_REG4 register. During self-test, the sensor outputs a predefined acceleration value. To use the self-test feature, set the ST bit, wait for the self-test to complete, and then clear the ST bit to return to normal operation.
  • The interrupt pins can be configured to generate interrupts based on various events, such as data ready, overrun, or threshold exceedance. This allows the microcontroller to be notified of specific events and take action accordingly.
  • To configure the LIS3DHTR for low-power operation, set the LPEN bit in the CTRL_REG1 register. This reduces the power consumption of the device. Additionally, the ODR (output data rate) can be adjusted to reduce power consumption further.
  • The LIS3DHTR is a more advanced version of the LIS3DH, with additional features such as a built-in temperature sensor, improved noise performance, and a wider range of output data rates.
