- Part Number LISA-U201-03S
- Manufacturer u-blox
- Pin Count 76
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LISA-U201-03S-5
- Released Date Jul 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LISA-U201-03S Details
-
Manufacturer Part Number:
LISA-U201-03S
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MODULE-76
-
HTS Code:
8542.39.00.01
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XQMA-N76
-
Length:
33.2 mm
-
Number of Functions:
1
-
Number of Terminals:
76
LISA-U201-03S Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first apply the power supply (VCC) and then the enable signal (PWR_ON). This ensures proper initialization of the module.
-
The UART interface can be configured using the AT command set. The default baud rate is 115200, but it can be changed using the AT+IPR command. The UART interface is also 3.3V tolerant, so level shifting may be required if connecting to a 5V system.
-
The typical current consumption of the LISA-U201-03S is around 30mA in idle mode and up to 100mA during data transmission. However, this can vary depending on the specific use case and configuration.
-
The LISA-U201-03S has two antenna ports (ANT1 and ANT2) that can be used for antenna diversity. To implement antenna diversity, connect two antennas to the respective ports and configure the module using the AT+ANTCFG command.
-
The maximum operating temperature range for the LISA-U201-03S is -40°C to +85°C. However, it's recommended to operate the module within the -20°C to +70°C range for optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
LISA-U201-03S Overview

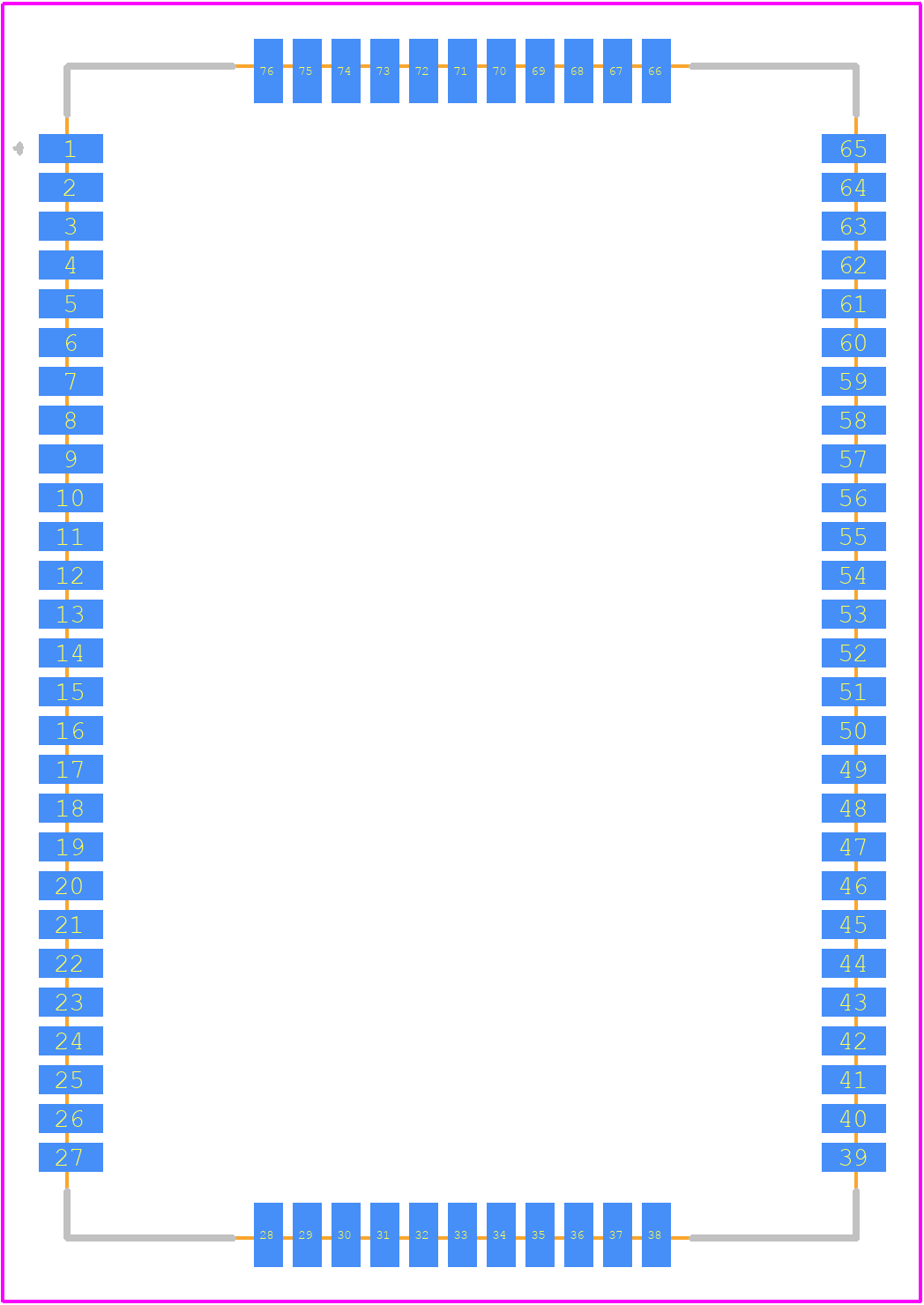

Use the download button to access the LISA-U201-03S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LISA-,
or try a keyword search, such as Cellular Telephone Circuits
