LL-509RGBC2E-002 footprint, schematic symbol and 3D model by Luckylight

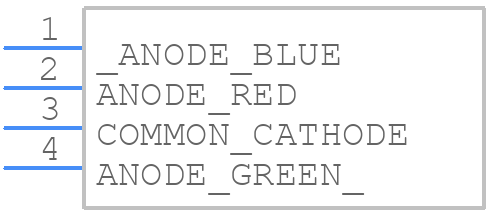

Symbol

PCB Footprints

3D Models

LL-509RGBC2E-002 Details

The recommended operating temperature range for the LL-509RGBC2E-002 is -40°C to 85°C.
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a soldering flux to the pads. Avoid applying excessive force or pressure, which can damage the LED module.
The maximum forward current rating for each color channel (R, G, B, and C) is 20mA. However, it's recommended to operate the LED module at a lower current to ensure longer lifespan and optimal performance.
While the LL-509RGBC2E-002 is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV radiation, and extreme temperatures. Consider using a protective coating or enclosure to ensure reliability.
To achieve uniform color mixing and brightness, ensure that the LED module is properly mounted and the light is diffused evenly. You can also use a light diffuser or optical lens to improve light distribution and color uniformity.
