Part Image

LM-LP-1005L - Bourns

Description: Audio Transformers / Signal Transformers LINE MATCHING TRANS

Download LM-LP-1005L Model

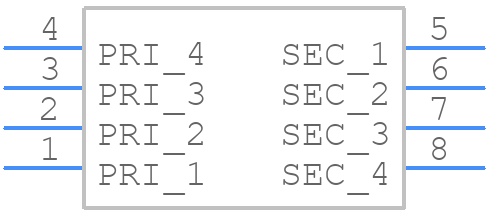

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM-LP-1005L - Bourns PCB footprint - Other - Other - LM-LP-1005L-4
click to zoom
3D Models
LM-LP-1005L - Bourns  - 3D model - Other - LM-LP-1005L-4
click to zoom

LM-LP-1005L Details

  • Manufacturer Part Number:

    LM-LP-1005L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    5.25

  • Additional Feature:

    TURNS RATIO: 1:1

  • Approvals:

    UL

  • Height:

    12.6 mm

  • Length:

    17.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    3.5 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Primary Impedance:

    600 OHMS

  • Secondary Impedance:

    600 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    TELECOM TRANSFORMER

  • Width:

    17.7 mm

LM-LP-1005L Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM-LP-1005L involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source to minimize inductance.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the device.
  • The LM-LP-1005L can operate safely within a temperature range of -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • Yes, the LM-LP-1005L is designed to withstand high-vibration environments, but it's essential to ensure the device is properly secured to the PCB and the PCB is securely fastened to the system to prevent mechanical stress.
  • To troubleshoot issues with the LM-LP-1005L, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and the PCB layout is correct. If issues persist, consult the datasheet and application notes or contact Bourns Inc support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM-LP-1005L Overview

Use the download button to access the LM-LP-1005L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM-LP, or try a keyword search, such as Telecom Transformers
