Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or mu-metal shielding, to contain the magnetic field.
While the datasheet specifies a maximum rated voltage, it's essential to consider the voltage stress during transient events, such as inrush current or voltage spikes. As a general rule, keep the voltage stress below 1.5 times the rated voltage to ensure reliability.
The optimal operating frequency depends on the specific application requirements. Consider factors such as the switching frequency, core losses, and winding resistance. Bourns provides guidance on frequency selection in their application notes and technical support resources.
Proper thermal management is crucial to ensure the inductor's reliability. Ensure good airflow, use thermal interface materials, and consider heat sinks or thermal pads to keep the inductor's temperature below the maximum rated value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM-NP-1002L Overview

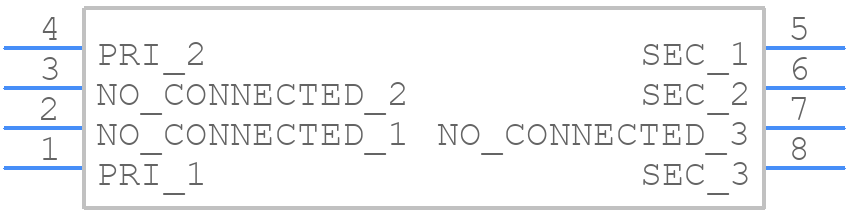

Use the download button to access the LM-NP-1002L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM-NP,
or try a keyword search, such as Telecom Transformers
