LM239AD - STMicroelectronics

Description: Low-power quad voltage comparators SO-14 , 2V to 32V , 250mV , -65°C to +150°C

Download LM239AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

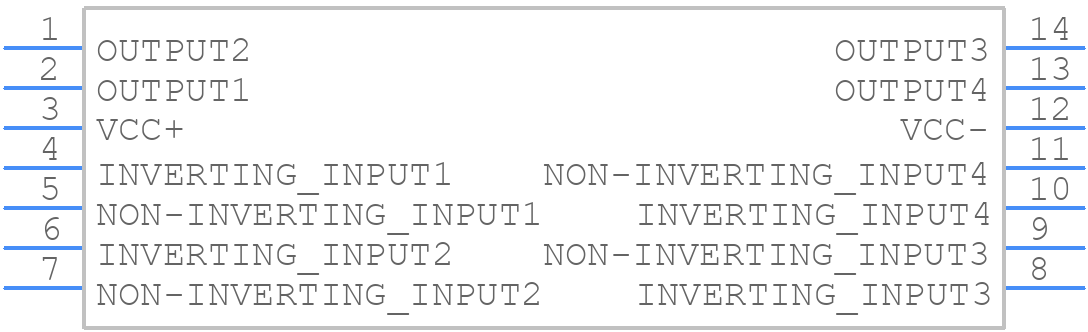

Symbol
LM239AD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LM239AD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-14
click to zoom
3D Models
LM239AD - STMicroelectronics - 3D model - Small Outline Packages - SO-14
click to zoom

LM239AD Details

  • Manufacturer Part Number:

    LM239AD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MICRO, SOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

LM239AD Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • To prevent oscillation, add hysteresis to the comparator by connecting a small resistor (e.g., 1kΩ) between the output and the non-inverting input. This creates a small voltage difference between the input voltages, ensuring a stable output.
  • The minimum voltage difference required between the input pins to guarantee a valid output is typically around 2-5mV, depending on the specific application and noise conditions. However, it's recommended to maintain a voltage difference of at least 10-20mV for reliable operation.
  • No, the LM239AD is a comparator, not an amplifier. It's designed to compare two input voltages and produce a digital output, not to amplify a signal. Using it as an amplifier can lead to unstable operation and incorrect results.
  • When the input voltages are equal, the output of the comparator is undefined. To handle this situation, you can add a small capacitor (e.g., 10nF) between the output and ground to filter out any noise or oscillations. Alternatively, you can use a separate circuit to detect when the input voltages are equal and take appropriate action.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM239AD Overview

Use the download button to access the LM239AD schematic symbol, PCB footprint, and 3D model.
