LM248N - STMicroelectronics

Description: Four UA741 quad bipolar operational amplifiers, Low input offset voltage: 1 mV, -40 ° C to 105 ° C

Download LM248N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

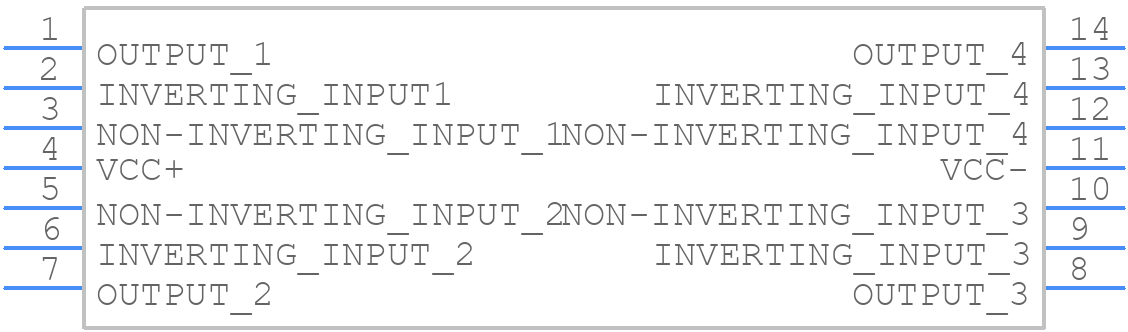

Symbol
LM248N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LM248N - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO14_2025
click to zoom
3D Models
LM248N - STMicroelectronics - 3D model - Small Outline Packages - SO14_2025
click to zoom

LM248N Details

  • Manufacturer Part Number:

    LM248N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.05 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    14

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Slew Rate-Min:

    0.25 V/us

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Current-Max:

    4.8 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    6.35 mm

LM248N Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM248N is dependent on the package type and ambient temperature. For the DIP8 package, the maximum power dissipation is 500mW at 25°C. For the SO8 package, it is 320mW at 25°C. Refer to the thermal characteristics section of the datasheet for more information.
  • While the LM248N is an op-amp, it can be used as a comparator in certain applications. However, it is not recommended as it is not optimized for comparator operation. The LM248N has a relatively slow slew rate and may not provide the desired performance in high-speed comparator applications. STMicroelectronics offers dedicated comparator products, such as the LM2903, that are better suited for comparator applications.
  • The input impedance of the LM248N is typically around 2MΩ, but it can vary depending on the specific application and operating conditions. This is not explicitly stated in the datasheet, but it can be inferred from the input bias current and common-mode input impedance specifications.
  • Yes, the LM248N can be used in a single-supply configuration. However, the input common-mode voltage range is limited to within 2V of the positive supply rail, and the output voltage swing is reduced when operating from a single supply. Refer to the application notes and design guidelines in the datasheet for more information on single-supply operation.
  • The noise performance of the LM248N is characterized by its input voltage noise density and input current noise density. The datasheet specifies these parameters as 10nV/√Hz and 0.5pA/√Hz, respectively, at 1kHz. However, the actual noise performance may vary depending on the specific application and operating conditions.
