LM2575-5.0YWM - Microchip

Description: Switching Voltage Regulators 1A Step-Down SMPS Regulator

Download LM2575-5.0YWM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

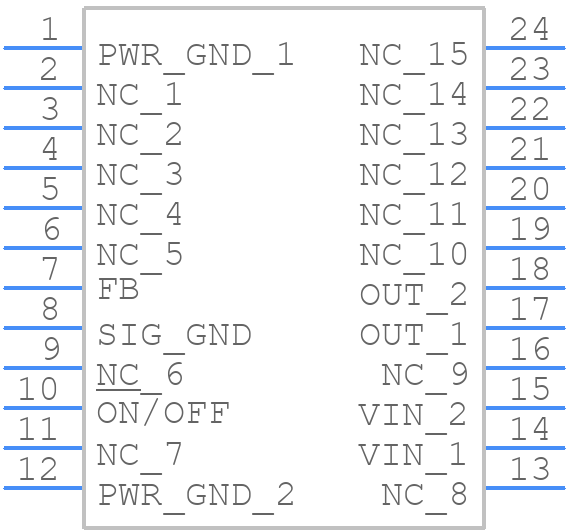

Symbol
LM2575-5.0YWM - Microchip - PCB symbol
click to zoom
PCB Footprints
LM2575-5.0YWM - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 24-PIN WIDE SOIC (WM)
click to zoom
3D Models
LM2575-5.0YWM - Microchip - 3D model - Small Outline Packages - 24-PIN WIDE SOIC (WM)
click to zoom

LM2575-5.0YWM Details

  • Manufacturer Part Number:

    LM2575-5.0YWM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOIC-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.42 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    63 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.52 mm

LM2575-5.0YWM Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM2575-5.0YWM is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The LM2575-5.0YWM has a maximum operating junction temperature of 125°C, but it's recommended to keep it below 85°C for reliable operation. You can use thermal management techniques like heat sinks or thermal interfaces to reduce the temperature.
  • To ensure the output voltage is stable and accurate, make sure to use a stable input voltage, choose the correct output capacitor value, and keep the feedback resistors within the recommended range. Also, ensure that the layout is clean and free from noise.
  • The LM2575-5.0YWM is a switching regulator, and it can generate switching noise. To minimize the noise, use a low-ESR output capacitor, keep the layout compact, and use shielding or filtering techniques. You can also consider using a linear regulator or a different switching regulator with lower noise specifications.
  • The output current capability of the LM2575-5.0YWM depends on the input voltage, output voltage, and ambient temperature. You can use the datasheet's thermal derating curves and output current vs. input voltage graphs to estimate the maximum output current. A general rule of thumb is to derate the output current by 10-20% to ensure reliable operation.
