LM2576TV-015G - onsemi

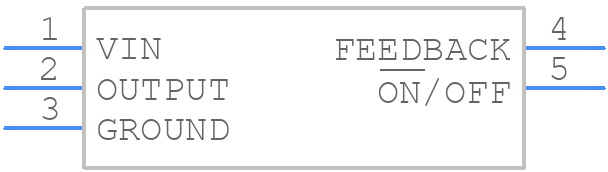

LM2576TV-015G Details

• Manufacturer Part Number:

  LM2576TV-015G

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  TO-220, 5 PIN

• Pin Count:

  5

• Manufacturer Package Code:

  314B-05

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  30 V

• JESD-30 Code:

  R-PZFM-T5

• JESD-609 Code:

  e3

• Number of Functions:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  7.5 A

• Output Voltage-Max:

  15.3 V

• Output Voltage-Min:

  14.7 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP5,.15,.2,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  63 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  ZIG-ZAG

• Time@Peak Reflow Temperature-Max (s):

  40
