LM2596DSADJR4G - onsemi

Description: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Download LM2596DSADJR4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

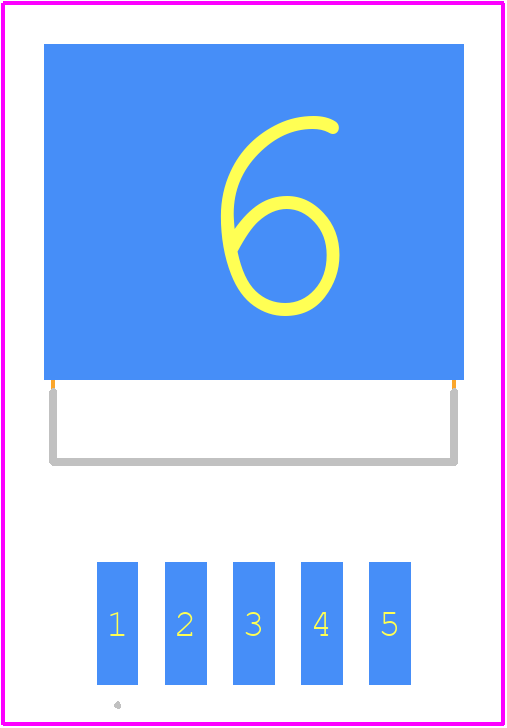

LM2596DSADJR4G - onsemi PCB footprint - Other - Other - D2PAK 5−LEAD CASE 936A−02 ISSUE E_2025-2
click to zoom
3D Models
LM2596DSADJR4G - onsemi  - 3D model - Other - D2PAK 5−LEAD CASE 936A−02 ISSUE E_2025-2
click to zoom

LM2596DSADJR4G Details

  • Manufacturer Part Number:

    LM2596DSADJR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    5 LEAD D2PAK

  • Package Description:

    D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    936A-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.23 TO 37 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.02 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.5 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    180 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.1945 mm

LM2596DSADJR4G Frequently Asked Questions (FAQs)

  • The maximum input voltage is 40V, but it's recommended to keep it below 35V for reliable operation.
  • Use a high-quality output capacitor with low ESR, and ensure the feedback resistors are of high precision (1% or better). Also, keep the output capacitor close to the IC to minimize noise.
  • The minimum input voltage is 4V, but it's recommended to keep it above 5V for reliable operation.
  • The LM2596DSADJR4G is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • Use a TVS diode or a voltage clamp circuit at the input to protect the IC from voltage surges or spikes.
