LM2902QS14-13 - Diodes Incorporated

LM2902QS14-13 Details

• Manufacturer Part Number:

  LM2902QS14-13

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

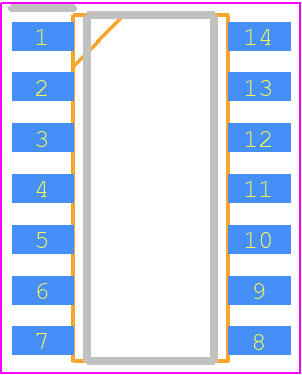

• Package Description:

  SOP-14

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  6

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.5 µA

• Bias Current-Max (IIB) @25C:

  0.2 µA

• Common-mode Reject Ratio-Min:

  60 dB

• Common-mode Reject Ratio-Nom:

  70 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  10000 µV

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.635 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  YES

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.73 mm

• Supply Current-Max:

  3 mA

• Supply Voltage Limit-Max:

  36 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Gain-Min:

  25000

• Wideband:

  NO

• Width:

  3.895 mm
