LM2903Q2T - STMicroelectronics

Description: Analog Comparators Dual LP Comparator 25nA 250mV 4mA

Download ECAD Model

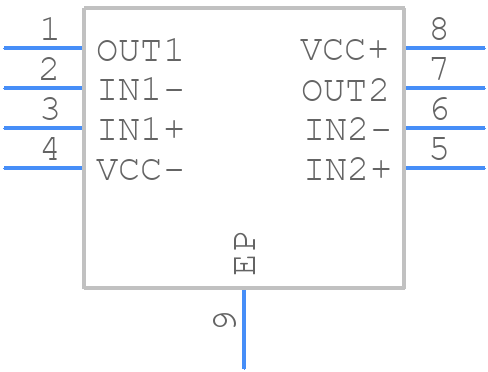

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

LM2903Q2T - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 2x2x0.6mm package
click to zoom

3D Models

LM2903Q2T - STMicroelectronics  - 3D model - Small Outline No-lead - DFN8 2x2x0.6mm package
click to zoom

LM2903Q2T Details

  • Manufacturer Part Number:

    LM2903Q2T

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON, SOLCC8,.08,20

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    32 Weeks, 4 Days

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    1.61

  • Samacsys Modified On:

    2022-07-08 14:47:23

  • YTEOL:

    8.8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    0.6 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

LM2903Q2T Overview

Use the download button to access the LM2903Q2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM290, or try a keyword search, such as Comparators
