LM301ADR2G - onsemi

Description: Class AB Output Provides Excellent Linearity; Low Input Offset Current: 20 nA Maximum Over Temperature Range; Guaranteed Drift Characteristics; External Frequency Compensation for Flexibility; Output Short Circuit Protection; Pb-Free Packages are Available

Download LM301ADR2G Model

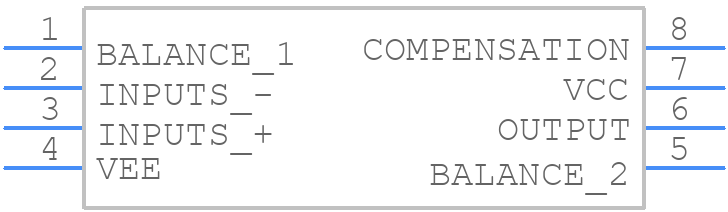

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM301ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - soic-8+
click to zoom
3D Models
LM301ADR2G - onsemi  - 3D model - Small Outline Packages - soic-8+
click to zoom

LM301ADR2G Details

  • Manufacturer Part Number:

    LM301ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.03 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3.9 mm

LM301ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM301ADR2G should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour around the device to dissipate heat efficiently. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stability, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high capacitance value. A minimum of 10uF is recommended. Also, ensure that the input capacitor has a low ESR and a capacitance value of at least 1uF. Additionally, keep the feedback loop as short as possible and avoid routing the feedback trace near noise sources.
  • The maximum input voltage that can be applied to the LM301ADR2G is 18V. Exceeding this voltage may cause damage to the device. It's recommended to add input voltage protection, such as a voltage regulator or a transient voltage suppressor, to prevent overvoltage conditions.
  • The output voltage of the LM301ADR2G can be calculated using the following formula: Vout = (R1 / R2) * (1.25V). R1 and R2 are the resistors in the feedback network. Ensure that the resistors have a 1% tolerance to maintain output voltage accuracy.
  • The maximum output current that the LM301ADR2G can deliver is 1.5A. However, the device can deliver higher currents for short durations. Ensure that the output current is within the recommended operating range to prevent overheating and device damage.
