LM301AP - Rochester Electronics

Description: HIGH-PERFORMANCE OPERATIONAL AMPLIFIERS

Download LM301AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

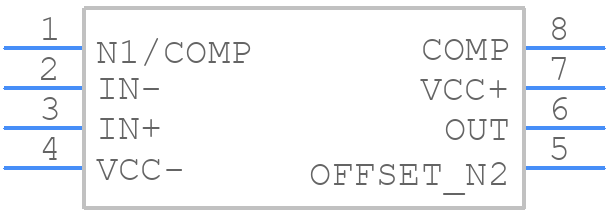

Symbol
LM301AP - Rochester Electronics - PCB symbol
click to zoom
PCB Footprints
LM301AP - Rochester Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)_2022
click to zoom
3D Models
LM301AP - Rochester Electronics - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)_2022
click to zoom

LM301AP Details

  • Manufacturer Part Number:

    LM301AP

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Rochester Electronics LLC

  • YTEOL:

    4.2

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.81 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1000

  • Width:

    7.62 mm

LM301AP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LM301AP is 0°C to 70°C, although it can operate up to 125°C with reduced performance and reliability.
  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be located close to the regulator. Additionally, a 0.1uF capacitor can be added between the input and ground pins to improve noise rejection.
  • The maximum input voltage that the LM301AP can handle is 35V, although it's recommended to keep the input voltage at least 2V above the desired output voltage to ensure proper regulation.
  • The LM301AP is designed for low-current applications up to 1A. For high-current applications, it's recommended to use a heat sink and ensure proper thermal management to prevent overheating. Alternatively, consider using a higher-current voltage regulator such as the LM317 or LM338.
  • To protect the LM301AP from input voltage transients, a transient voltage suppressor (TVS) diode can be added between the input pin and ground. This will help absorb voltage spikes and prevent damage to the regulator.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM301AP Overview

Use the download button to access the LM301AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM301, or try a keyword search, such as Operational Amplifiers
