LM311NG - onsemi

Description: Obsolete - Linear Voltage Regulator, Positive, Adjustable Output, 1.5 A (60V)

Download LM311NG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

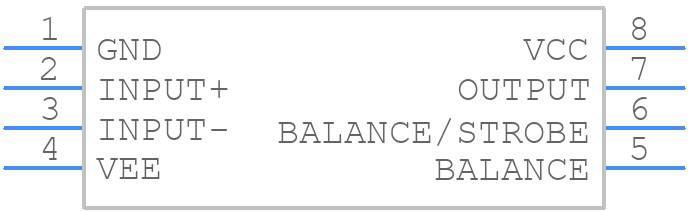

LM311NG - onsemi - PCB symbol
click to zoom
PCB Footprints
LM311NG - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - +8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
3D Models
LM311NG - onsemi - 3D model - Dual-In-Line Packages - +8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LM311NG
  • Part Number LM311NG
  • Manufacturer onsemi
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Dual-In-Line Packages
  • Footprint Name Dual-In-Line Packages - +8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
  • Released Date Jan 11, 2017
  • Last Modified Date Sep 19, 2024 2:45 PM UTC
  • Pinout / Pin List Click Here (Member Only)

LM311NG Details

  • Manufacturer Part Number:

    LM311NG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 LEAD PDIP

  • Pin Count:

    8

  • Manufacturer Package Code:

    626-05

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    200 ns

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

LM311NG Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply the positive supply voltage (VCC) before the negative supply voltage (VEE). This ensures that the internal circuitry is properly biased and prevents unwanted latch-up.
  • To ensure stability, it's essential to decouple the power supplies with capacitors (e.g., 0.1 μF) and use a bypass capacitor (e.g., 10 nF) between the VCC and VEE pins. Additionally, keep the input and output traces short and away from noise sources.
  • The maximum allowable input voltage differential is ±30 V. Exceeding this limit can cause internal damage or latch-up. Ensure that the input voltage difference is within the recommended range to maintain reliable operation.
  • Yes, the LM311NG can be used as a zero-crossing detector. However, it's essential to add hysteresis to the circuit to prevent oscillations. A simple way to do this is to add a small resistor (e.g., 1 kΩ) between the output and the non-inverting input.
  • The pull-up resistor value depends on the load current and the desired output voltage. A general guideline is to choose a value between 1 kΩ and 10 kΩ. For example, if the load current is 1 mA, a 2.2 kΩ pull-up resistor would be suitable.
