The maximum power dissipation of the LM324ADTBR2 is dependent on the package and ambient temperature. For the DTBR2 package, the maximum power dissipation is 500mW at 25°C ambient temperature, and it decreases as the ambient temperature increases.
While the LM324ADTBR2 is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth. Additionally, the output stage is not designed for high-current drive, so it may not be suitable for driving heavy loads.
The input impedance of the LM324ADTBR2 is typically around 2MΩ, but it can vary depending on the specific application and operating conditions. It's recommended to check the datasheet and application notes for more information on input impedance and how it affects circuit performance.
Yes, the LM324ADTBR2 can be used in a single-supply configuration, but it requires careful consideration of the input common-mode range and output voltage swing. The device can operate from a single supply voltage as low as 5V, but the input common-mode range is limited to within 2V of the supply rails.
The LM324ADTBR2 has a relatively high input voltage noise density of around 20nV/√Hz, which can affect circuit performance in high-gain or high-impedance applications. However, the device has a low input current noise density of around 0.01pA/√Hz, making it suitable for applications where input current noise is a concern.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM324ADTBR2 Overview

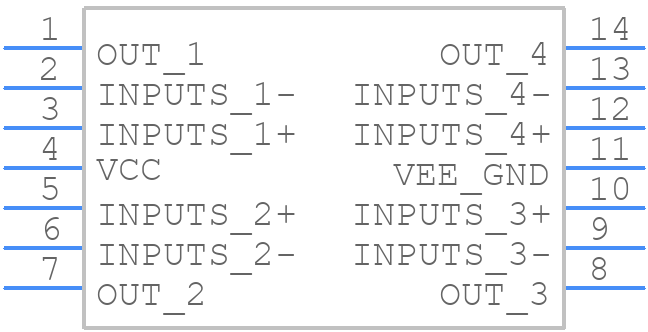

Use the download button to access the LM324ADTBR2 schematic symbol, PCB footprint, and 3D model.
