LM324DR2G - onsemi

Description: Common Mode Range Extends to Negative Supply; ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation; True Differential Input Stage; Single Supply Operation: 3.0 V to 32 V (LM224, LM324, LM324A); Low Input Bias Currents: 100 nA Maximum (LM324A); Short Circuited Protected Outputs; Four Amplifiers Per Package; Industry Standard Pinouts; Internally Compensated; Pb-Free Packages are Available*

Download LM324DR2G Model

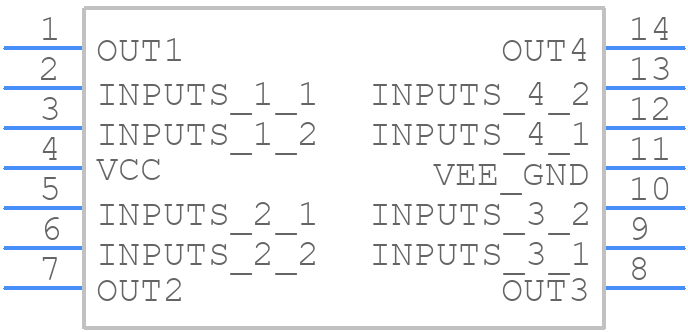

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM324DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−14 (Pb−Free)_
click to zoom
3D Models
LM324DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−14 (Pb−Free)_
click to zoom

LM324DR2G Details

  • Manufacturer Part Number:

    LM324DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Width:

    3.9 mm

LM324DR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM324DR2G is 670mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
  • The LM324DR2G is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to derate the power dissipation at higher temperatures to ensure reliability.
  • To ensure stability, make sure to decouple the power supply pins with capacitors, use a low-ESR capacitor for bypassing, and avoid capacitive loads. Also, consider adding a compensation capacitor between the output and the inverting input for high-gain configurations.
  • The input impedance of the LM324DR2G is typically around 2MΩ, but it can vary depending on the specific application and operating conditions.
  • While the LM324DR2G can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate and limited bandwidth. A dedicated comparator like the LM339 would be a better option.
