LM324FVJ-E2 - ROHM Semiconductor

Description: Operational Amplifiers - Op Amps Ind 4Ch 3-32V Ground Sense

Download LM324FVJ-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

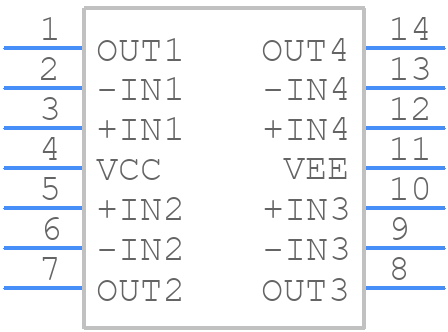

Symbol
LM324FVJ-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
LM324FVJ-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 (TSSOP-B14J)
click to zoom
3D Models
LM324FVJ-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - TSSOP14 (TSSOP-B14J)
click to zoom

LM324FVJ-E2 Details

  • Manufacturer Part Number:

    LM324FVJ-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-08-03

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.3 µA

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    800

  • Width:

    4.4 mm

LM324FVJ-E2 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM324FVJ-E2 is 670mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
  • To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet.
  • The recommended operating voltage range for the LM324FVJ-E2 is 3V to 32V, with a maximum rating of 36V. Operating outside this range may affect the op-amp's performance and reliability.
  • The LM324FVJ-E2 is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • Handle the LM324FVJ-E2 with ESD-protective equipment and follow proper ESD handling procedures to prevent damage. The device has a human body model (HBM) ESD rating of 2kV.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM324FVJ-E2 Overview

Use the download button to access the LM324FVJ-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM324, or try a keyword search, such as Operational Amplifiers
