The maximum power dissipation of the LM324KDR is dependent on the package type and ambient temperature. For the SOIC-14 package, the maximum power dissipation is 640mW at 25°C ambient temperature. However, this value can be derated based on the operating temperature and package type. Refer to the thermal characteristics section of the datasheet for more information.
While the LM324KDR is an op-amp, it can be used as a comparator in certain applications. However, it's essential to note that the LM324KDR is not designed specifically as a comparator and may not have the same performance characteristics as a dedicated comparator IC. Additionally, the output stage of the LM324KDR is designed for linear operation, so it may not be suitable for high-speed switching applications.
The input impedance of the LM324KDR is typically around 2MΩ, but this value can vary depending on the specific application and operating conditions. It's essential to consider the input impedance when designing the circuit to ensure proper operation and to avoid any potential issues with input bias currents.
The LM324KDR is rated for operation up to 125°C, but it's essential to consider the derating of the maximum power dissipation and the potential for reduced performance at higher temperatures. Additionally, the device may require additional thermal management and design considerations to ensure reliable operation in high-temperature environments.
The LM324KDR is a general-purpose op-amp and can be used in audio applications, but it may not be the best choice due to its limited bandwidth (1MHz) and slew rate (0.5V/μs). For audio applications, a more specialized op-amp with higher bandwidth and slew rate may be more suitable. However, the LM324KDR can still be used in certain audio applications, such as low-frequency amplification or filtering, where its performance characteristics are sufficient.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM324KDR Overview

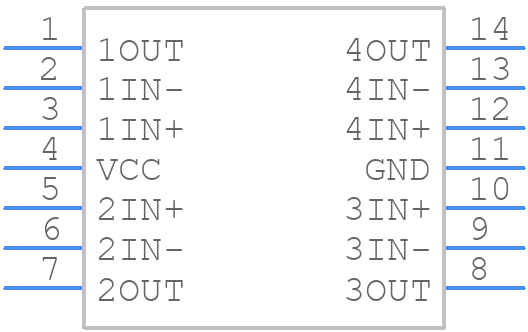

Use the download button to access the LM324KDR schematic symbol, PCB footprint, and 3D model.
