LM337K - STMicroelectronics

LM337K Details

• Manufacturer Part Number:

  LM337K

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TO-204AA

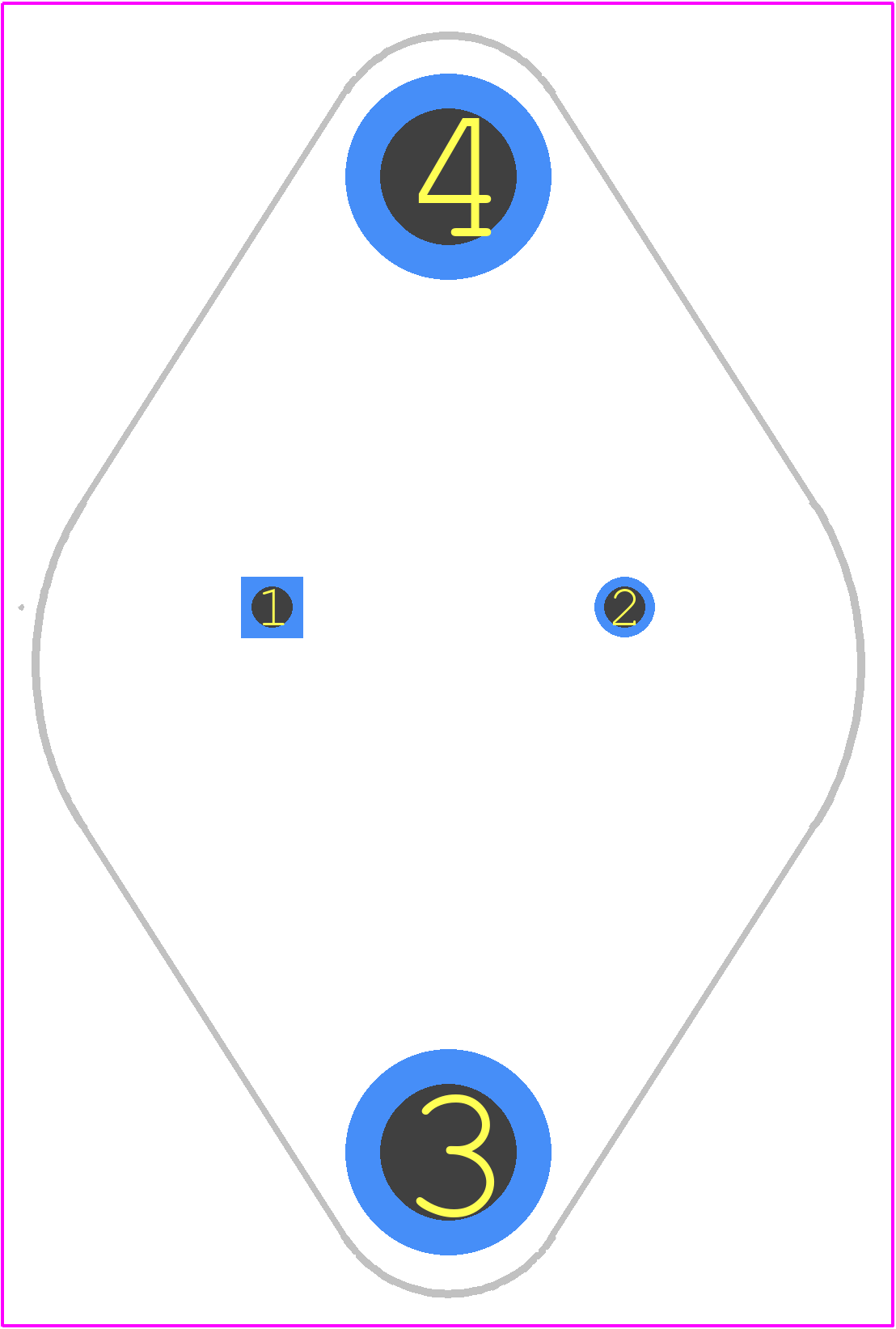

• Package Description:

  TO-3, 2 PIN

• Pin Count:

  2

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Nom:

  3 V

• Input-Output Voltage Differential-Max:

  40 V

• Input-Output Voltage Differential-Min:

  3 V

• JESD-30 Code:

  O-MBFM-P2

• JESD-609 Code:

  e3

• Line Regulation-Max (%/V):

  0.07

• Load Regulation-Max(%):

  1.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  2

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature-Max:

  125 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  37 V

• Output Voltage1-Min:

  1.2 V

• Package Body Material:

  METAL

• Package Code:

  BFM

• Package Equivalence Code:

  TO-204/-3

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE NEGATIVE SINGLE OUTPUT STANDARD REGULATOR

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM
