LM338K - STMicroelectronics

Description: STMicroelectronics LM338K Linear Voltage Regulator, 5A, Adjustable, 1.2 → 32 V 3-Pin, TO-3

Download LM338K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LM338K - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

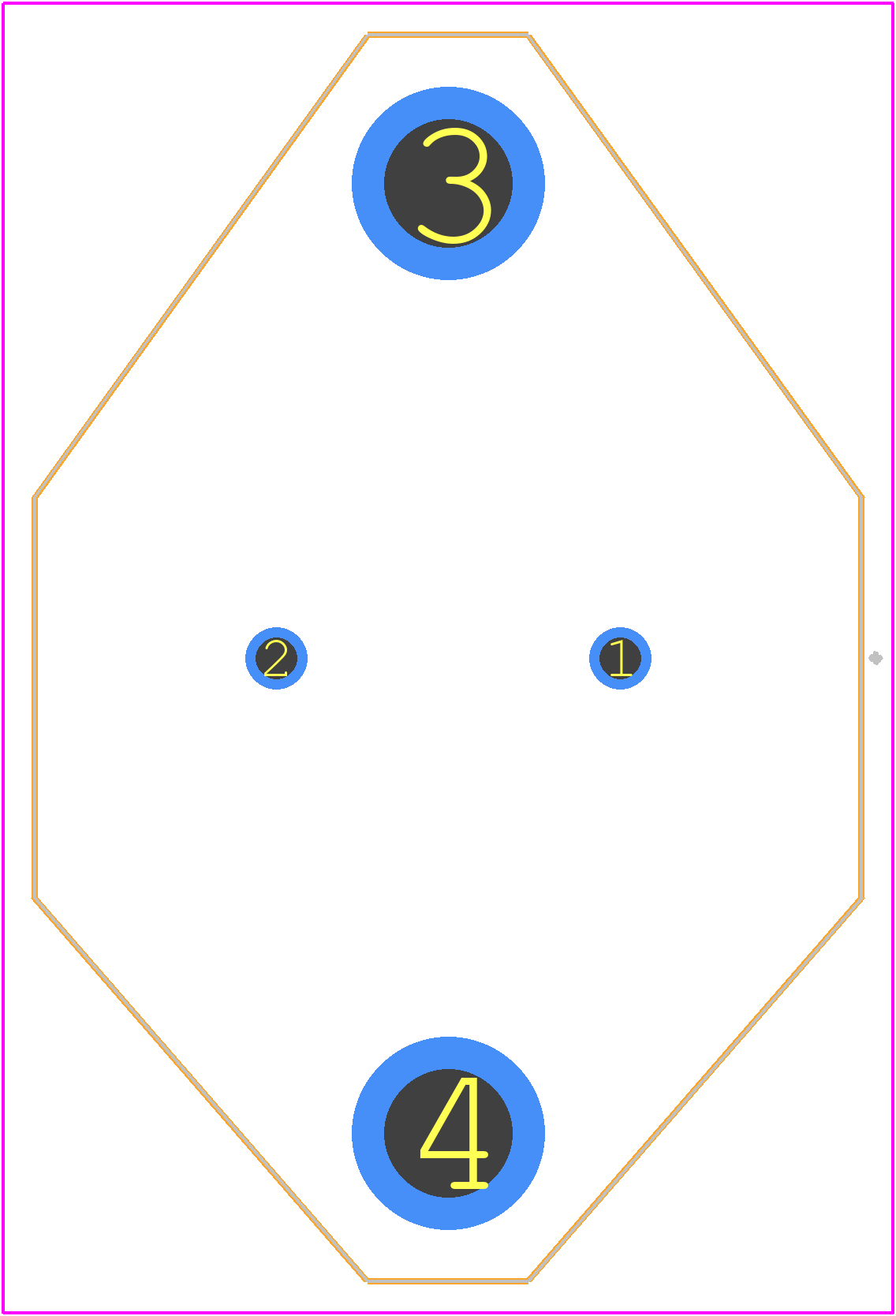

LM338K - STMicroelectronics PCB footprint - Other - Other - TO-3-ren1
click to zoom
3D Models
LM338K - STMicroelectronics - 3D model - Other - TO-3-ren1
click to zoom

LM338K Details

  • Manufacturer Part Number:

    LM338K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-204AA

  • Package Description:

    METAL CAN, TO-3, 2 PIN

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    3 V

  • Input-Output Voltage Differential-Max:

    35 V

  • Input-Output Voltage Differential-Min:

    3 V

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e3

  • Line Regulation-Max (%/V):

    0.06

  • Load Regulation-Max(%):

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    2

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    32 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    METAL

  • Package Code:

    BFM

  • Package Equivalence Code:

    TO-204/-3

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

LM338K Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM338K is 40V. Exceeding this voltage can cause damage to the device.
  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be located close to the device. Additionally, the input capacitor should be at least 10uF to prevent oscillations.
  • The maximum output current that the LM338K can deliver is 5A. However, the device can deliver up to 7A for short periods of time, but this may reduce its lifespan.
  • To protect the LM338K from overheating, ensure good heat sinking, and keep the device away from high-temperature sources. The device has a built-in thermal shutdown that turns off the output when the junction temperature exceeds 150°C.
  • No, the LM338K is a linear voltage regulator and is not suitable for switching regulator applications. It is designed to provide a stable output voltage in linear regulator circuits.
