LM339AM footprint, schematic symbol and 3D model by onsemi

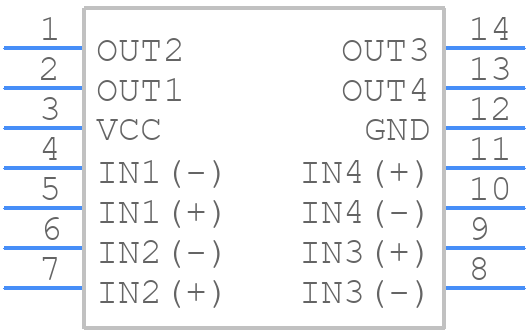

Symbol

PCB Footprints

3D Models

LM339AM Details

The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
To prevent oscillation, ensure that the input signals are clean and free of noise, and that the comparator output is properly terminated. You can also add hysteresis to the comparator by adding a small amount of positive feedback from the output to the non-inverting input.
The minimum input voltage required for the comparator to function correctly is typically around 1.5V to 2V, depending on the specific application and the desired accuracy. However, the device can operate with input voltages as low as 0.5V, but with reduced accuracy and speed.
No, the LM339AM is a comparator, not an amplifier. It is designed to compare two input voltages and output a digital signal indicating which input is higher. It is not suitable for amplifying small signals.
To reduce the power consumption of the LM339AM, operate it at a lower supply voltage (VCC) and reduce the frequency of the input signals. You can also consider using a lower-power comparator or a comparator with a built-in shutdown feature.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the LM339AM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LM339, or try a keyword search, such as Comparators
