- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM348N
- Part Number LM348N
- Manufacturer onsemi
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - LM556
- Released Date Apr 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM348N Details
-
Manufacturer Part Number:
LM348N
-
Manufacturer:
onsemi
Trust Checks
Community Provided
System Verified
Community Approved
LM348N Overview

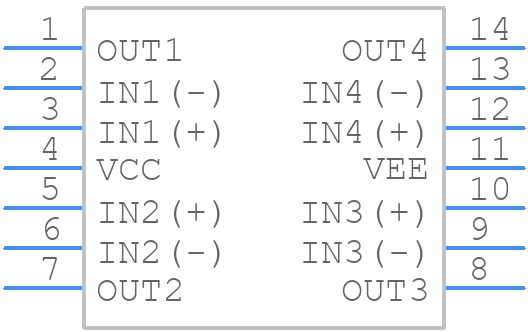

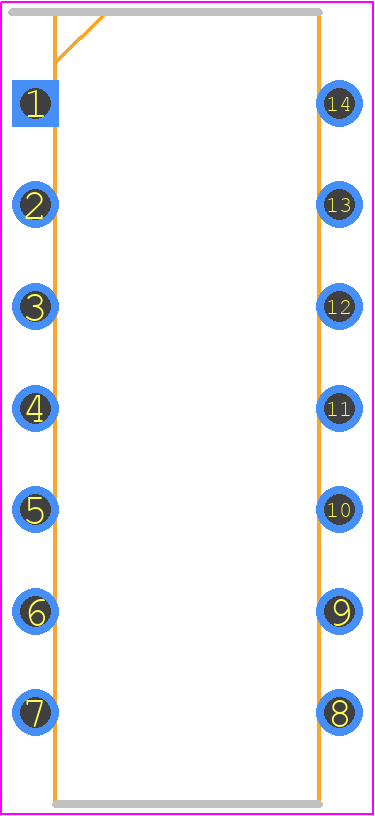

Use the download button to access the LM348N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM348,
or try a keyword search, such as Operational Amplifiers
