LM358DR2G - onsemi

Description: Short Circuit Protected Outputs; Low Input Bias Currents; Single Supply Operation: 3.0 V to 32 V ; Single and Split Supply Operation; Internally Compensated; ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation; True Differential Input Stage; Common Mode Range Extends to Negative Supply; Pb-Free Packages are Available

Download LM358DR2G Model

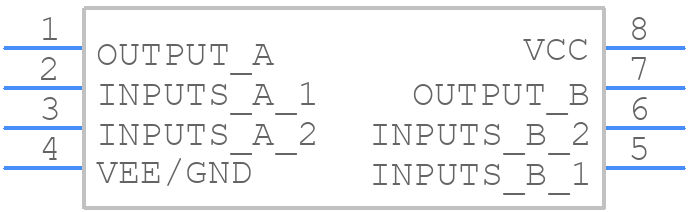

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM358DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8, 150 mils
click to zoom
3D Models
LM358DR2G - onsemi  - 3D model - Small Outline Packages - SOIC 8, 150 mils
click to zoom

LM358DR2G Details

  • Manufacturer Part Number:

    LM358DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.05 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3.9 mm

LM358DR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LM358DR2G is 670mW, which is calculated based on the maximum junction temperature (Tj) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • Yes, the LM358DR2G can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V, and the output voltage swing is reduced when operating from a single supply.
  • To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and avoid capacitive loading on the output. Additionally, the feedback loop should be designed to minimize phase shift and ensure a stable gain margin.
  • The recommended operating voltage range for the LM358DR2G is 3V to 32V, with a maximum differential input voltage of ±30V.
  • While the LM358DR2G can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5V/μs) and limited output current (±20mA). A dedicated comparator like the LM339 or LM2901 would be a better choice for most applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM358DR2G Overview

Use the download button to access the LM358DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM358, or try a keyword search, such as Operational Amplifiers

Parts related to LM358DR2G

Showing 0 results

LM358DR2G Alternates

Showing results

Image Part Number Model
Part Image NCV2904DR2 onsemi

Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8

Part Image NCV2904VDR2G onsemi

Operational Amplifier, 2 Func, 13000uV Offset-Max, BIPolar, PDSO8

Part Image LM258M Fairchild Semiconductor Corporation

Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8

Part Image LM258AYD STMicroelectronics

Operational Amplifier, 8 Func, 4000uV Offset-Max, BIPolar, PDSO2

Part Image LM358D1 Texas Instruments

Operational Amplifier, 2 Func, 9000uV Offset-Max, BIPolar, PDSO8

For a full list of alternate parts for LM358DR2G, check out Findchips.com
