LM393EDR2G - onsemi

Description: Low Input Offset Current: 5.0 nA; Low Input Offset Voltage: 2.0 mV (max) LM393A 5.0 mV (max) LM293/393; Low Input Bias Current: 25 nA; Wide Single-Supply Range: 2.0 Vdc to 36 Vdc; Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels; ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance; Input Common Mode Range to Ground Level; Very Low Current Drain Independent of Supply Voltage: 0.4 mA; Split-Supply Range: +/-1.0 Vdc to +/-18 Vdc; Differential Inp

Download LM393EDR2G Model

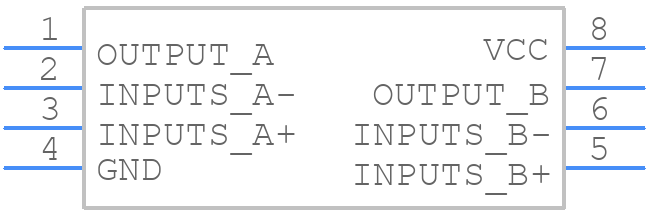

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM393EDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
LM393EDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

LM393EDR2G Details

  • Manufacturer Part Number:

    LM393EDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.57

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.4 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM393EDR2G Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is the supply voltage (VCC) + 0.3V, which is 36V for the LM393EDR2G.
  • To prevent oscillation, ensure that the input voltage difference is greater than the input offset voltage (typically 2mV), and add a small capacitor (e.g., 10nF) between the output and ground to filter out high-frequency noise.
  • The minimum input voltage difference required for a valid output is typically around 2mV, but this can vary depending on the specific application and noise conditions.
  • No, the LM393EDR2G is a comparator, not an amplifier. It is designed to provide a digital output based on the comparison of two input voltages, not to amplify a signal.
  • The open-drain output of the LM393EDR2G requires an external pull-up resistor to VCC to function correctly. The value of the pull-up resistor depends on the specific application and the desired output voltage.
