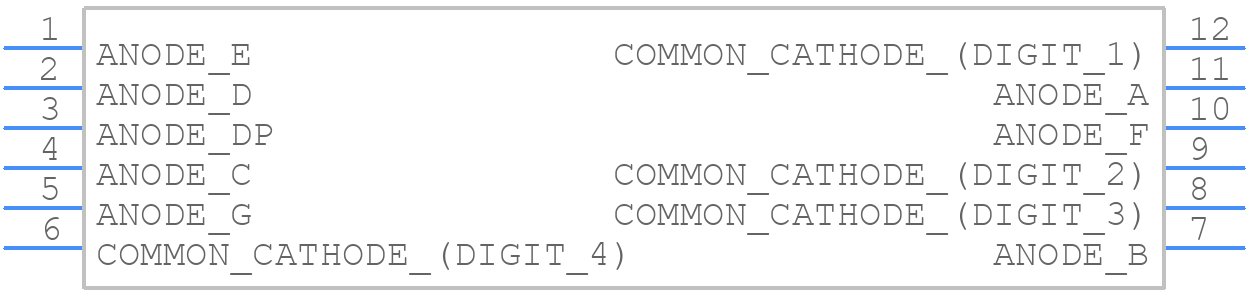

Symbol

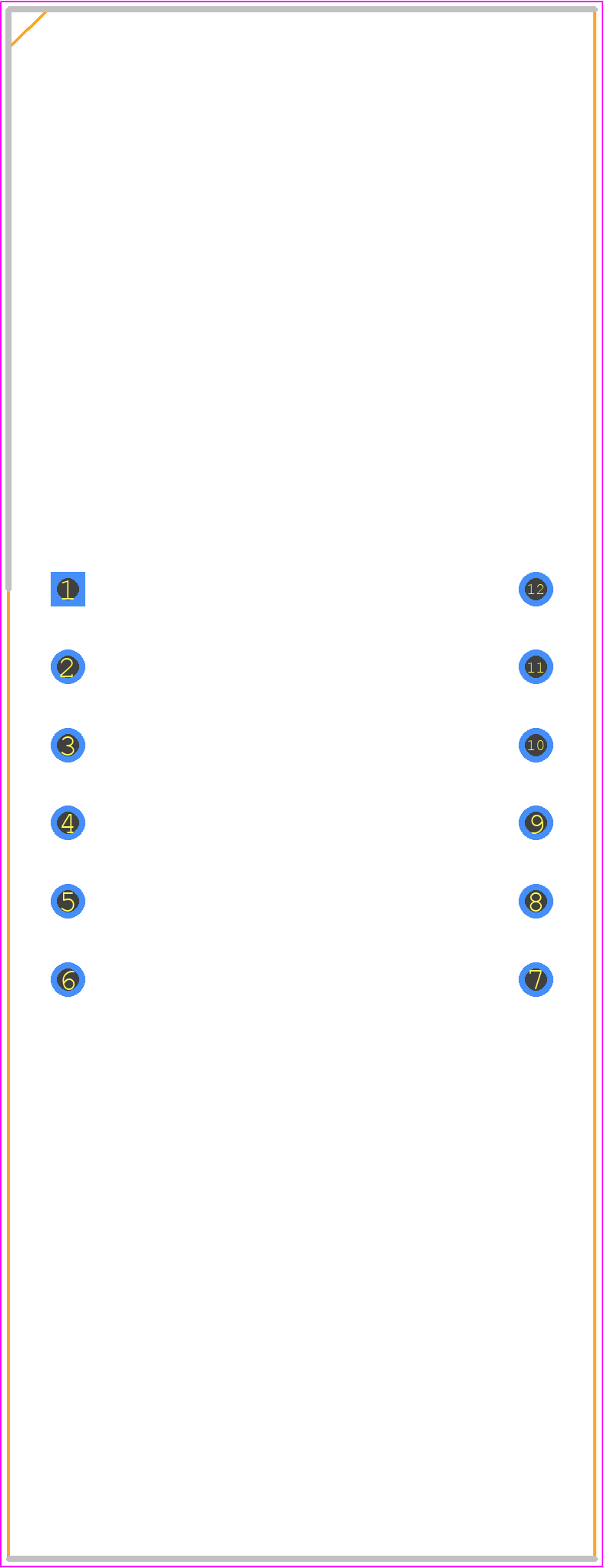

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5674
- Part Number LM5674
- Manufacturer Ledtech
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LM5674
- Released Date Oct 9, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5674 Details
-
Manufacturer Part Number:
LM5674
-
Manufacturer:
Ledtech Electronics
Trust Checks
Expert Contribution
System Verified
Community Approved
LM5674 Overview
Use the download button to access the LM5674 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM567,
or try a keyword search, such as Telecom Signaling Circuits
