LM741CM - Rochester Electronics

Description: Standard (General Purpose) Amplifier 1 Circuit 8-SOIC

Download LM741CM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

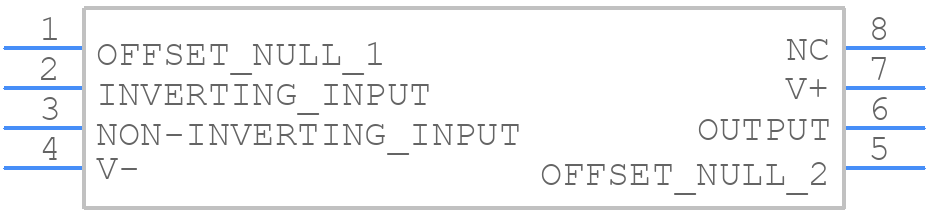

Symbol
LM741CM - Rochester Electronics - PCB symbol
click to zoom
PCB Footprints
LM741CM - Rochester Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC
click to zoom
3D Models
LM741CM - Rochester Electronics - 3D model - Small Outline Packages - 8-SOIC
click to zoom

LM741CM Details

  • Manufacturer Part Number:

    LM741CM

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Rochester Electronics LLC

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.5 V/us

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    1500

  • Width:

    3.9 mm

LM741CM Frequently Asked Questions (FAQs)

  • The LM741CM is a military-grade version of the LM741, with tighter specifications and a wider operating temperature range (-55°C to 125°C) compared to the standard LM741 (-25°C to 85°C).
  • Yes, the LM741CM is still available and supported by Rochester Electronics LLC, which is a licensed manufacturer of the device. They offer a range of packaging options and can provide support for legacy designs.
  • While the LM741CM is often used in legacy systems, it can still be used in new designs where a high-reliability, military-grade op-amp is required. However, it's worth considering newer op-amp options that may offer better performance and lower power consumption.
  • The LM741CM is designed to meet the radiation tolerance requirements of MIL-STD-883, with a total dose radiation tolerance of 100 krad (Si) and a neutron radiation tolerance of 1E12 n/cm².
  • Yes, the LM741CM is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated and that the application meets the device's thermal requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM741CM Overview

Use the download button to access the LM741CM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM741, or try a keyword search, such as Operational Amplifiers
