- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM741CN
- Part Number LM741CN
- Manufacturer Rochester Electronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8 LEAD PDIP CASE 626−05 ISSUE L
- Released Date Oct 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM741CN Details
-
Manufacturer Part Number:
LM741CN
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Rochester Electronics LLC
-
Amplifier Type:
OPERATIONAL AMPLIFIER
-
Average Bias Current-Max (IIB):
0.8 µA
LM741CN Frequently Asked Questions (FAQs)
-
The LM741CN is a commercial grade version of the LM741, with a wider operating temperature range (-40°C to 85°C) and a higher gain-bandwidth product. The LM741 is an industrial grade version with a narrower operating temperature range (-25°C to 85°C) and a lower gain-bandwidth product.
-
While the LM741CN can be used for audio applications, it's not the best choice due to its limited bandwidth (1.5 MHz) and high noise floor. For audio applications, op-amps with higher bandwidth and lower noise, such as the OP07 or OP27, are generally preferred.
-
Yes, the LM741CN can be used as a comparator, but it's not the best choice due to its limited slew rate (0.5 V/μs) and high input bias current (200 nA). For comparator applications, dedicated comparator ICs like the LM311 or LM339 are generally preferred.
-
The maximum power supply voltage for the LM741CN is ±18V, but it's recommended to operate it at ±15V or less to ensure reliable operation and minimize power consumption.
-
No, the LM741CN is not radiation-hardened and is not suitable for use in high-radiation environments, such as space or nuclear applications.
Trust Checks
Community Provided
System Verified
Community Approved
LM741CN Overview

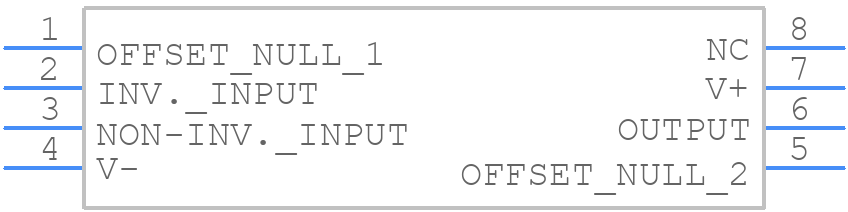

Use the download button to access the LM741CN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM741,
or try a keyword search, such as Operational Amplifiers
