LM75BD - NXP

Description: Pin-for-pin replacement for industry standard LM75 and LM75A and offers improved temperature resolution of 0.125 C and specification of a single part over power supply range from 2.8 V to 5.5 V  I 2C-bus interface with up to 8 devices on the same bus  Power supply range from 2.8 V to 5.5 V  Temperatures range from 55 C to +125 C

Download LM75BD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

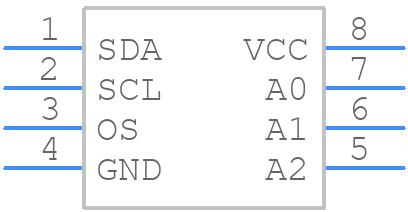

Symbol
LM75BD - NXP - PCB symbol
click to zoom
PCB Footprints
LM75BD - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1.
click to zoom
3D Models
LM75BD - NXP - 3D model - Small Outline Packages - SOT96-1.
click to zoom

LM75BD Details

  • Manufacturer Part Number:

    LM75BD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3.9MM, PLASTIC, SOP -8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

LM75BD Frequently Asked Questions (FAQs)

  • The LM75BD can be connected to the same I2C bus as long as each device has a unique address. The LM75BD has three address pins (A0, A1, and A2) that can be used to set one of eight possible addresses. Therefore, up to eight LM75BD devices can be connected to the same I2C bus.
  • The LM75BD has an accuracy of ±2°C from -25°C to 100°C, and ±3°C from -55°C to 125°C. This accuracy is specified for the typical operating conditions and may vary depending on the specific application and environment.
  • The LM75BD has a power-on reset (POR) circuit that resets the device to its default state when the power supply voltage (VCC) is applied. The POR circuit ensures that the device starts up in a known state, with the temperature register set to 0°C and the configuration register set to its default values.
  • Yes, the LM75BD can be used in a multi-master I2C bus configuration. The device has a built-in arbitration mechanism that allows it to operate in a multi-master environment. However, the user must ensure that the masters are properly synchronized and that the bus is not overloaded.
  • The maximum clock frequency for the I2C interface of the LM75BD is 400 kHz. However, the device can also operate at lower clock frequencies, such as 100 kHz, to accommodate slower microcontrollers or other devices on the I2C bus.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM75BD Overview

Use the download button to access the LM75BD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM75B, or try a keyword search, such as Temperature Sensors
